Display Type:TFT LCD
Display Resolution:480 x 272 pixels
Screen Size:4.3 inches
Backlight Type:LED
Operating Temperature:-20°C to 60°C
Storage Temperature:-30°C to 70°C
Power Input:24VDC (±20%)
Power Consumption:400mA @ 24VDC
Cooling System:Fanless
Connectivity:COM1 and COM3 RS-485, MPI 187.5K
Front Panel Rating:NEMA4/IP65
Enclosure Material:Plastic Molding Housing
Dimensions (WxHxD):128 x 102 x 32 mm
Weight:0.25 kg

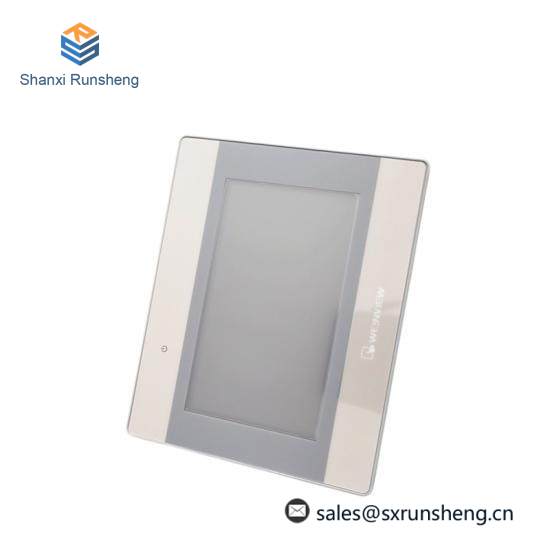

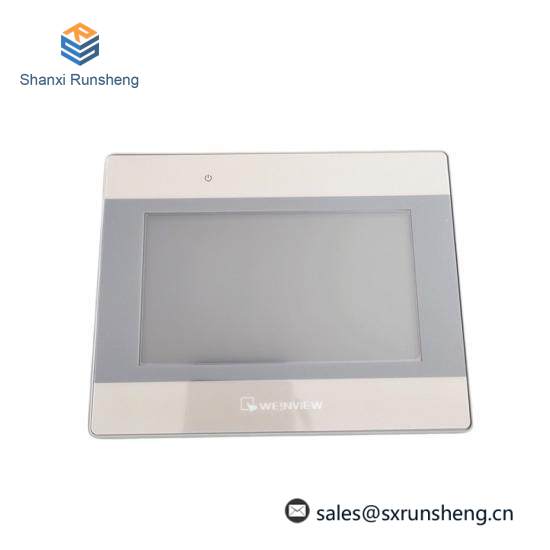

The Weintek HMI MT8050IE boasts a compact and robust design, perfectly suited for industrial environments where space is at a premium and reliability is essential.
Featuring a 4.3″ LED-backlit TFT LCD display, this touchscreen provides clear and crisp visuals, enhancing user interaction and system monitoring.
With its fan-less cooling system, the MT8050IE ensures silent operation, minimizing noise and potential dust ingress, ideal for continuous operation in demanding conditions.
Equipped with versatile communication ports including COM1 and COM3 RS-485, along with MPI 187.5K support, it seamlessly integrates with various industrial systems and protocols.
Built with a PCB coating process, the MT8050IE is engineered to withstand harsh environmental conditions, offering superior resistance to corrosion and ensuring long-lasting performance.
Certified NEMA4/IP65 compliant, this HMI is suitable for outdoor or washdown applications, providing a durable solution for a wide range of industrial settings.
