Manufacturer:SIEMENS
Model Number:6ES7142-5AF00-0BA0
Product Class:Digital Output Module
Product Group:Industrial Control Systems
Module Type:ET 200SP
Output Channels:8
Operating Voltage:24V DC
Current Rating:0.5A
Switching Mode:Source Output (PNP)
Switching Type:P-Channel
Protection Level:IP20
Communication Compatibility:Modular & Compact Design, Built-in PLC function
EMI Filter:Built-in (230V 1 phase / 460V 3 phase)
Fieldbus Compatibility:Optional Fieldbus Modules (DeviceNet, Profibus, LonWorks, CANopen)
RFI Protection:RFI-switch for mains
DC Bus Sharing:Flexible
Diagnostics:Module diagnostics for: short-circuit to L+ and ground, wire break, supply voltage
Lifecycle Status:PM300: Active
Net Weight:0.077 lb
Package Dimensions:9.90 x 16.80 x 6.10 cm
Application Scope:Industry

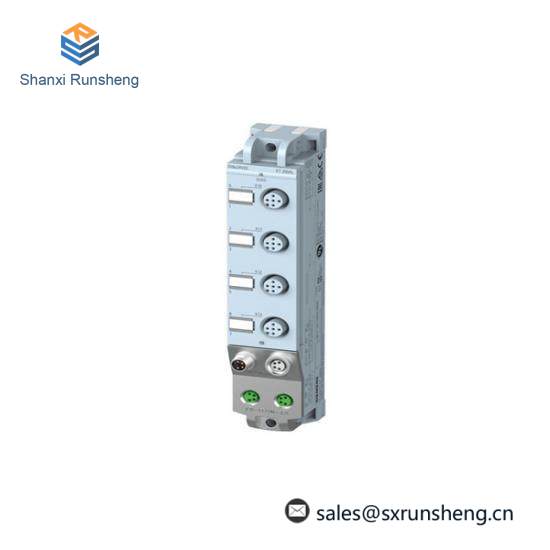

The Siemens 6ES7142-5AF00-0BA0 Digital Output Module is a robust and versatile component engineered to meet the stringent demands of industrial automation environments. This module is specifically designed to provide reliable and efficient control over electrical circuits, ensuring smooth operation and enhanced system performance.
Featuring a compact design and 16 output channels, this module is capable of handling a wide range of load types including inductive, capacitive, and resistive loads. With a current rating of 1A per channel, it offers ample power to drive various devices and machinery in manufacturing processes.
Equipped with advanced communication interfaces such as MPI (Multiprocessing Interface) and PROFINET, the module facilitates seamless integration with other Siemens or third-party devices within the factory network, enhancing connectivity and data exchange capabilities.
Operating within a temperature range of -25°C to +60°C, this module is designed for durability and can withstand harsh industrial conditions. It ensures continuous and stable operation even under varying environmental conditions, making it suitable for applications across diverse industries.
With safety certifications such as EN 61000-6-2 and EN 61000-6-4, the module complies with international standards for electromagnetic compatibility and immunity to disturbances, ensuring a safe and secure operational environment. Additionally, the CE marking signifies its conformity to European Union regulations, providing peace of mind to users regarding compliance and safety.
