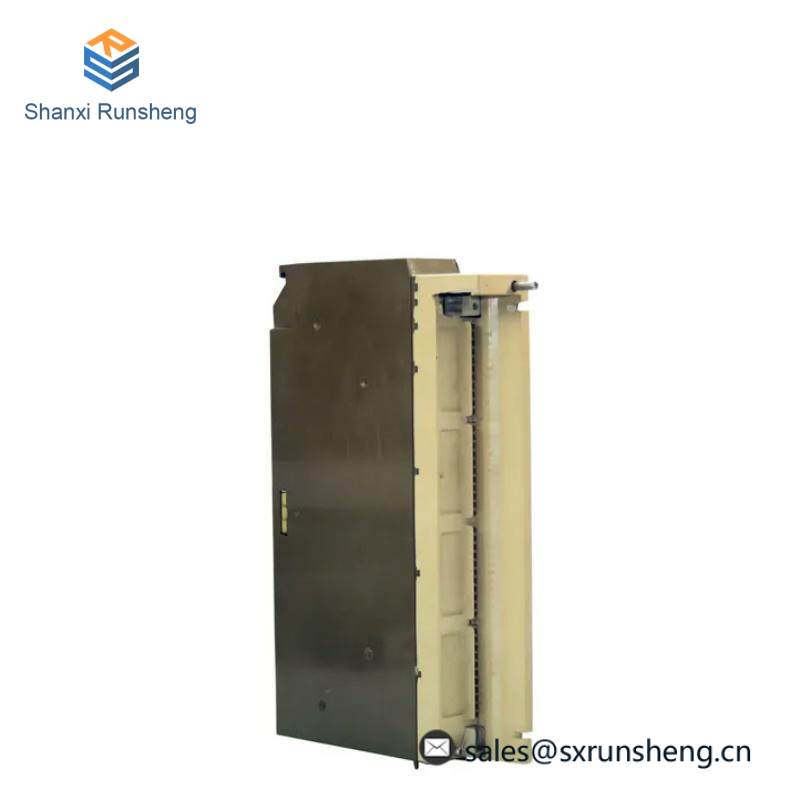

SIEMENS 6ES5470-7LB11 Analog Output Module: High-Performance, Precision Control for Industrial Automation

Type:Analog Output Module

Manufacturer:SIEMENS

Model:6ES5470-7LB11

Output Channels:8

Voltage Range:DC 0-10V or 4-20mA

Operating Temperature:-25°C to +60°C

Connection Type:Floating

Load Capacity:Max. 250Ω for 10V, Max. 750Ω for 20mA

Communication Interface:Built-in Fieldbus Modules (DeviceNet, Profibus, LonWorks, CANopen)

    The SIEMENS SIMATIC S5 470 ANALOG OUTPUT MODULE, FLOATING COMPACT VERSION is designed for industrial automation environments, offering a versatile solution for controlling analog outputs. This module is part of the renowned S5 series known for its reliability and efficiency.

    Featuring a compact and floating design, this module ensures space-saving installation without compromising performance. It supports a wide range of communication protocols through optional fieldbus modules, enhancing its compatibility with diverse automation systems.

    With an output voltage range of +/-10V, this module provides accurate and stable control signals to actuators and sensors, crucial for precision in various industrial processes. Its operating temperature range of -20°C to +55°C ensures robust operation under varying environmental conditions.

    The power supply voltage of 8 VDC makes it suitable for a broad spectrum of applications, while its compact size facilitates easy integration into existing systems. This floating compact version further reduces crosstalk between channels, improving overall system performance and reliability.

    For optimal performance, it’s recommended to pair this module with appropriate measuring range modules for specific applications, ensuring precise control and efficient operation within industrial automation systems.
