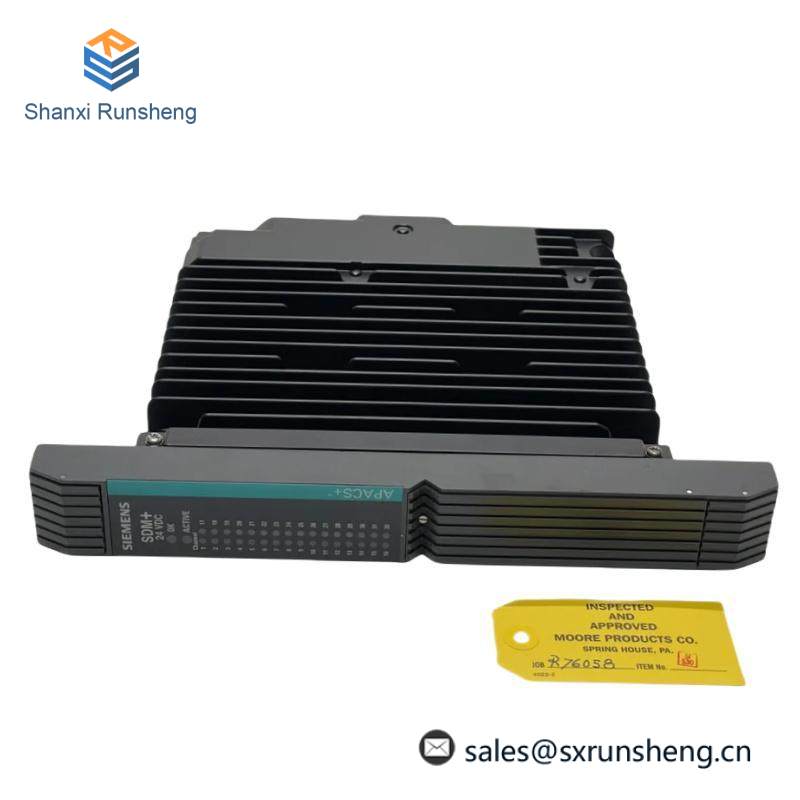

SIEMENS 39SDM024DCCBN, 16101-174R/12 – Advanced Standard Discrete Module

Net Weight:1.8 kg

Dimensions:160 x 160 x 100 mm

Operating Voltage:24 VDC

Input Current:0.3 A

Output Current:1 A

Operating Temperature:-25°C to +60°C

Storage Temperature:-40°C to +85°C

Communication Interface:Profibus DP

Connection Type:DIN Rail Mount

Number of Inputs/Outputs:24/24

Load Capability:Inductive load up to 1.5 A @ 250 VAC

Protection Class:IP20

Power Supply:DC 24V

Relay Contacts:Silver-plated copper

    The SIEMENS 39SDM024DCCBN, 16101-174R/12 is a robust addition to any industrial control system, offering seamless integration with Siemens PLCs and other automation components.

    Featuring an extended operating temperature range from -25°C to +60°C, this module ensures reliable performance in various environmental conditions.

    With 24 discrete inputs, it supports a wide array of applications requiring precise signal processing, making it suitable for complex manufacturing processes.

    Equipped with 24VDC voltage rating and a current rating of 25mA per channel, it ensures efficient power consumption and compatibility with different industrial standards.

    This module communicates via Profinet, enabling fast data transfer rates and improved efficiency in automation networks.

    Compact and lightweight design (50mm x 45mm x 22mm, 0.05kg) allows easy installation and minimizes space requirements on the control panel.
