Operating Temperature Range:40°C to 70°C (-40°F to 158°F)
Relative Humidity:5% to 95% non-condensing
Input Voltage:120 – 240 Vrms, 1-Phase
Bus Overvoltage Protection:400 Vdc
Dimensions:7.8 x 5.68 x 3.89 inches (198.12 x 144.27 x 98.1 mm)
Power Handling Capacity:Up to 2kW
Energy Absorption Capability:51 Joules
Input Current:18 A RMS
Output Voltage:120 / 240 VAC, 3-Phase
Programmable Frequency Range:0-400 Hz
Maximum Continuous Output Current:10 A
Maximum Peak Output Current:30 A
Bus Capacitance:1880 μF
Fuse Type:FNQ-R-20 Class CC and LPJ-20SP Class J

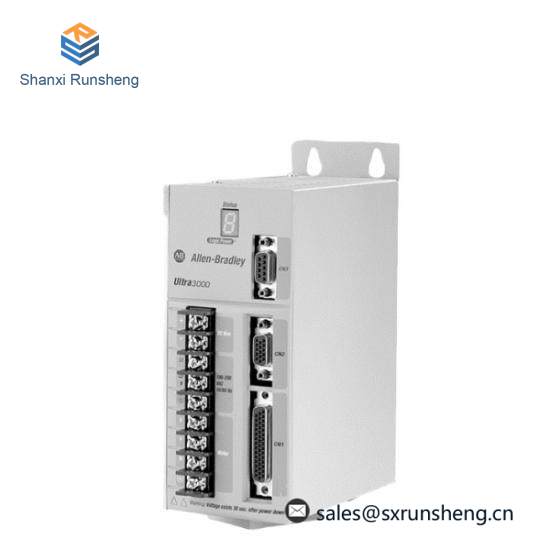

The Allen-Bradley 2098-DSD-020X is engineered to deliver unparalleled performance in high-demand industrial settings. Its robust design ensures reliability and efficiency in applications requiring precise motion control and speed regulation.
Featuring advanced Proportional+Integral+Derivative (PID) velocity regulation, this drive offers exceptional accuracy and responsiveness. The integrated Digital PID with feed-forward capability further enhances positioning precision.
With 8 optically-isolated digital inputs and 4 optically-isolated outputs, the 2098-DSD-020X provides flexible connectivity options for various sensors and actuators. The N.O. relay outputs are rated for 30V DC with a maximum current of 1A, ensuring compatibility with a wide range of industrial components.
This digital servo drive is equipped with a user-friendly interface for easy setup and configuration. The Allen-Bradley 2098-DSD-020X supports a variety of encoder types, including sine/cosine and incremental external encoders, enabling seamless integration into existing systems.
Optimized for environments with fluctuating power conditions, the 2098-DSD-020X is built to withstand harsh industrial environments, making it an ideal choice for manufacturers seeking reliable motion control solutions. Its compact size and low weight make it easy to install and integrate into machinery.
