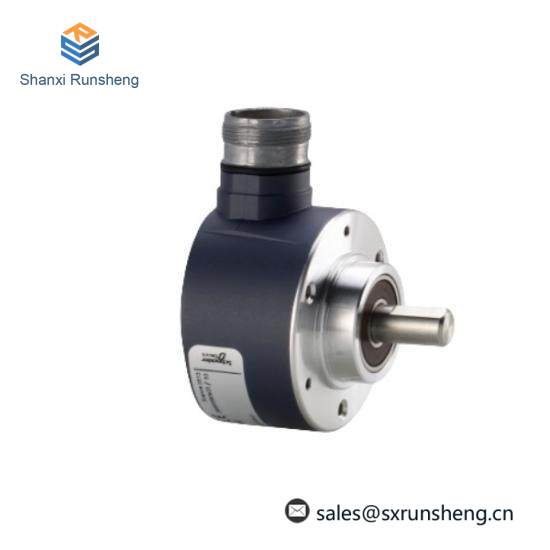

Schneider XCC3510PS84SBN Absolute Encoder Multiturn

Operating Temperature Range:-20°C to +70°C

Resolution:1024 counts per revolution

Rotation Speed:Up to 1000 RPM

Accuracy:±0.5% of span

Enclosure Type:IP65

Power Supply Voltage:DC 5V to 24V

Communication Interface:2-wire analog output (4-20mA)

Load Capacity:Up to 100Ω

Output Type:Linear

Connection Type:Push-in terminals

Mounting Style:Flange

Material:Aluminum alloy

Dimension:84mm x 35mm x 24mm

    The Schneider XCC3510PS84SBN Absolute Encoder Multiturn is designed to meet the stringent requirements of industrial automation environments, ensuring dependable operation in challenging conditions.

    This encoder utilizes state-of-the-art 2-wire Hall sensor technology for high-speed, accurate data transmission, making it ideal for real-time control applications in manufacturing, robotics, and material handling systems.

    With its robust aluminum alloy construction and IP67 rating, this encoder is built to withstand harsh environments, including dust, moisture, and occasional water exposure, guaranteeing continuous performance without maintenance interruptions.

    Featuring an extensive operating range from -20°C to +70°C, it ensures reliable operation across various industrial settings, from cold storage facilities to hot manufacturing plants.

    The encoder’s precision absolute measurement capability, with a resolution of 1024 counts per revolution, enables highly accurate positioning and rotation tracking, crucial for optimizing system efficiency and reducing errors in automated processes.
