Dimensions:188 x 131 x 35 mm (7.4 x 5.16 x 1.38 in)
CPU:Intel Atom 1.3GHz Single core/Dual thread
Resolution:Up to 1,920 x 1,200 pixels (WUXGA, VESA compatible)
Input Voltage:12VDC
Power Consumption:Max 25 W
Weight:Less than 2 lbs.
Enclosure Type:IP65, Standard EN/IEC 61131-2
Operating Temperature:-4°F to 140°F (-20°C to 60°C)
Humidity:10% to 90% RH, non-condensing
Port Connections:2x RS-232C/422/485 ports, 1x USB Type-A, 1x USB Mini B

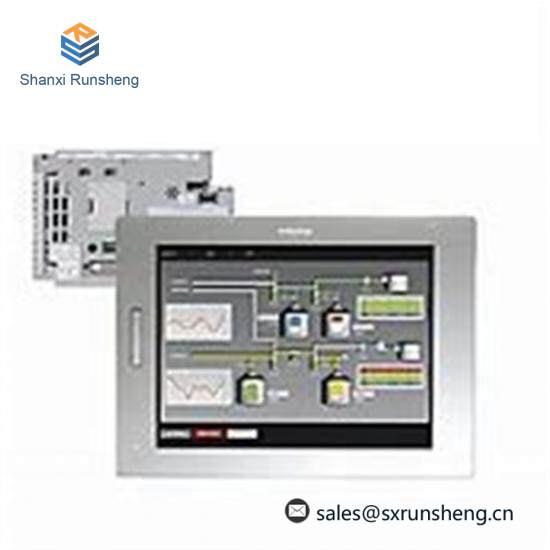

Engineered with robust materials, the Pro-Face PFXSP5B10 Box Module ensures durability and reliability in harsh industrial environments.
Equipped with an SD card slot for both application memory and storage, it supports efficient data management and customization.
Featuring a powerful single-core/dual-thread Intel Atom processor clocked at 1.3GHz, this module excels in high-speed data processing tasks.
With its passive air cooling system, the PFXSP5B10 minimizes noise and maintains optimal operational temperatures, enhancing system stability.
The inclusion of 256MB video memory, a 32GB CFast card, and approximately 17GB of free space offers ample resources for complex applications.
The modular design allows for easy integration into existing control systems, supporting a wide range of interfaces and protocols.
