Processing Speed (Hz):Up to 20,000 Hz
Axis Control:Up to 8 axes
Resolution (mm/step):0.001 mm
Power Supply Voltage:AC 110V / 220V
Operating Temperature:-10°C to 60°C
Memory Capacity (KB):512 KB
Communication Interface:USB, Ethernet

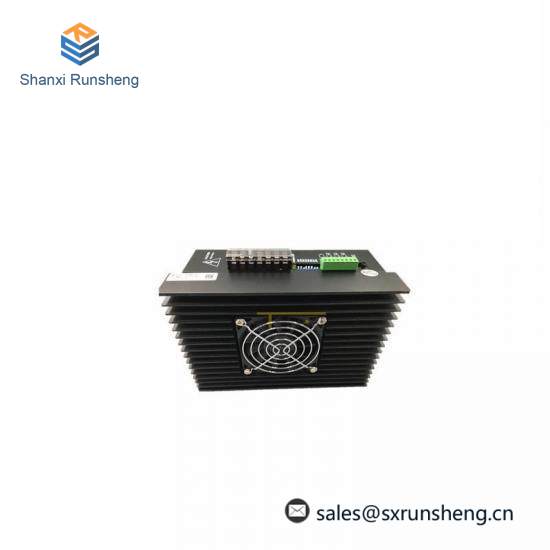

The LEADSHINE 3DM2283 motor driver is engineered with advanced microprocessor technology to deliver exceptional control and reliability in demanding industrial settings. This model is specifically tailored for applications requiring high torque output and precise positioning, making it ideal for CNC machines, robotics, and other precision machinery.
Featuring a compact yet robust design, the 3DM2283 incorporates a full-bridge H-bridge circuit to support bidirectional stepping and smooth motion control. Its versatile input voltage range allows for compatibility with a wide array of power supplies, ensuring flexibility across various automation systems.
With its high maximum output current capability, the 3DM2283 can efficiently drive large stepping motors, enabling faster acceleration and deceleration times without compromising on performance or stability. The unit supports up to 200 steps per revolution, providing precise control over motion.
The driver includes a PWM frequency range from 0Hz to 10kHz, allowing for fine-tuning of motor speed and acceleration profiles to meet specific application requirements. Additionally, built-in protection functions safeguard against overcurrent, overvoltage, short-circuits, and overheating, ensuring prolonged operational life and safety.
The 3DM2283 comes equipped with easy-to-use setup software, which simplifies commissioning and parameter adjustment, reducing setup time and improving overall productivity. Its user-friendly interface and comprehensive documentation facilitate quick integration into existing systems.
