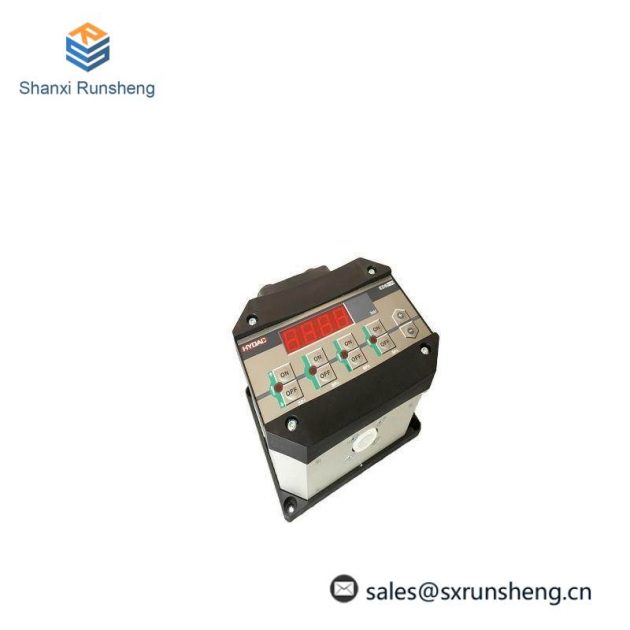

HYDAC EDS1791-N-016-000: High Precision Electronic Pressure Switch, Designed for Industrial Control Systems

Operating Range:0-1600 psi (0-110 bar)

Accuracy:+/- 1% F.S.

Response Time:≤ 0.5 seconds

Operating Temperature:-40°F to +185°F (-40°C to +85°C)

Switch Points:Up to 3 points

Output:4-20 mA, 1-5 VDC

Connection:M20 x 1.5 thread

Protection Class:IP67

Power Supply:9-32V DC

    The Hydac EDS1791-N-016-000 Electronic Pressure Switch is a high-performance solution for applications requiring accurate pressure control in industrial settings. Its compact design and robust construction make it suitable for harsh environments, ensuring long-lasting reliability.

    With an adjustable operating range from 0 to 160 bar, this pressure switch offers precise measurement capabilities, crucial for maintaining optimal hydraulic systems in manufacturing processes. Its accuracy and repeatability are within ±1% Full Scale and 0.5% Full Scale respectively, ensuring consistent performance.

    The switch provides two NO/NC relay contacts, which can be easily configured via a software interface. This feature allows for flexible integration into various control systems, enhancing operational efficiency.

    Featuring a low current consumption of up to 10 mA, the Hydac EDS1791-N-016-000 is energy-efficient, making it an eco-friendly choice for industries aiming to reduce power usage.

    Designed with IP65/IP67 protection class, this pressure switch withstands dust and water ingress, guaranteeing uninterrupted operation even under challenging conditions. Its stainless steel material ensures durability and resistance to corrosion.
