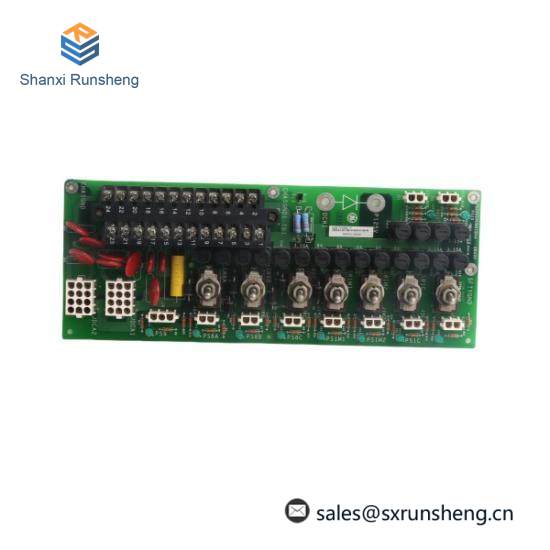

GE IS200EPDMG1BAA – Mark VI Series Gas/Turbine Control Circuit Board

Model:IS200EPDMG1BAA

Manufacturer:General Electric

Series:Mark VI

Type:Circuit Board

Dimensions (W x L):4in x 6.5in

Faceplate Dimensions (W x H):2.25in x 4in

Weight Before Packaging:<2lbs

Ethernet Capabilities:Yes

Control Type Options:Simplex or TMR (Triple Modular Redundant)

Terminal Blocks:2

Terminal Block Locations:Bottom corner

Power Supply Capacity:N/A (Integrated)

Memory Device:Serial 1024-bit

Bus Host Processor:Parallel-style

Plug Connectors:J2 and J1

Transformer Shape:Square

Transformer Position:Centered

Electronic Component Adjacent to Transformer:DS1

Full Part Number:IS200EPDMG1BAA

    The GE IS200EPDMG1BAA is a critical component of the Mark VI series, known for its reliability and efficiency in managing and controlling gas and steam turbines.

    Featuring advanced Ethernet capabilities, this board enables seamless integration with modern industrial networks, enhancing operational flexibility and connectivity.

    With support for both Simplex and TMR control configurations, the IS200EPDMG1BAA caters to various system sizes and complexities, ensuring optimal performance across diverse industrial settings.

    The inclusion of dual terminal blocks in the bottom corner facilitates easy connection to other system components, streamlining the installation process and reducing setup time.

    Equipped with a compact yet powerful 24 Vdc power supply, this board ensures stable operation while maintaining a lightweight design for convenient handling and placement within the control cabinet.
