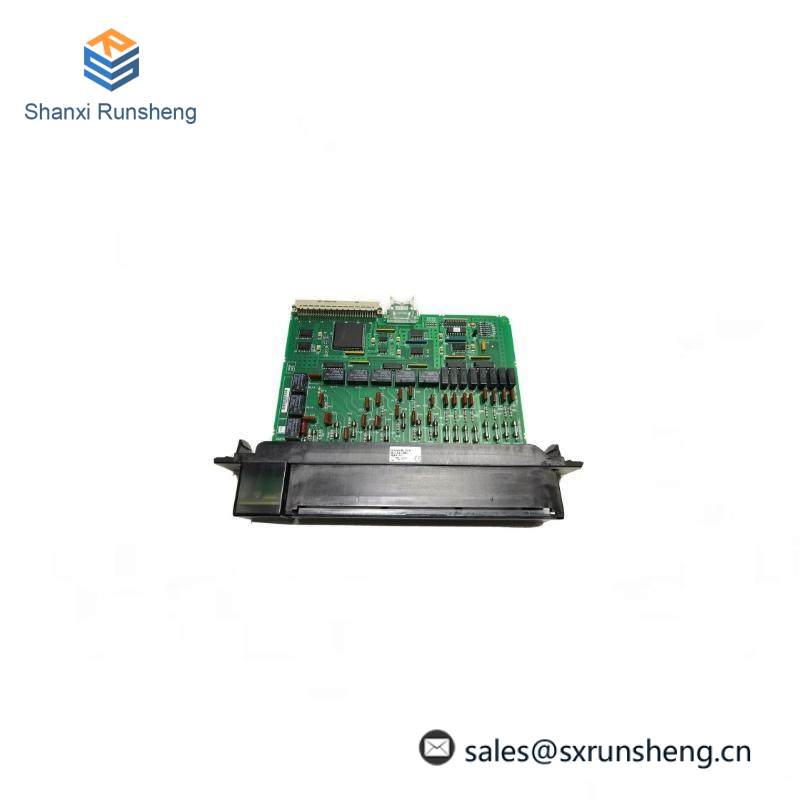

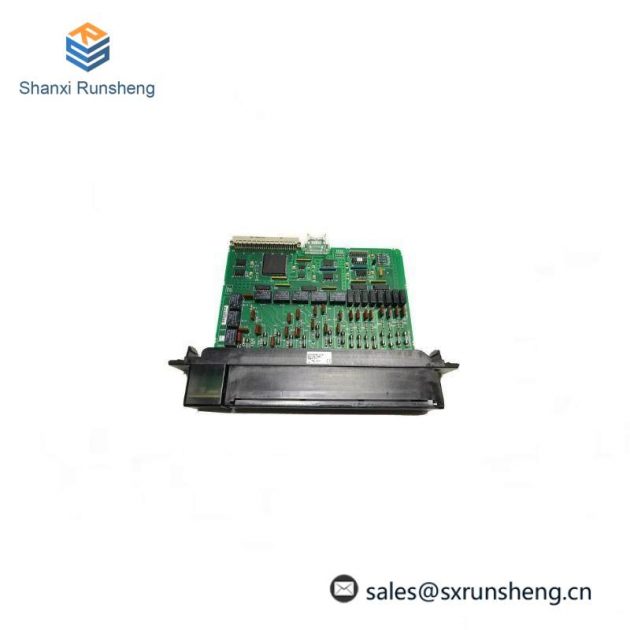

Product Type:Output Relay Module
Model Number:IC697MDL710
Brand:GE
Number of Relays:16
Relay Rating:5A @ 250V AC / 10A @ 125V AC
Operating Voltage:24V DC
Operating Current:Max 1A per channel
Contact Type:SPDT (Single Pole Double Throw)
Insulation Resistance:≥ 1000MΩ
Operating Temperature:-20°C to +70°C
Storage Temperature:-40°C to +85°C
Enclosure Type:IP20
Dimensions (WxHxD):94mm x 101mm x 101mm
Weight:0.2kg
The GE IC697MDL710 Output Relay Module is engineered to withstand demanding industrial conditions, offering a robust solution for controlling motor drives, lighting systems, and other high-power applications. With its compact design and efficient heat dissipation, this module ensures reliable operation in a wide range of temperatures.
Each SPST relay within the IC697MDL710 is rated for a maximum current of 10A at 24VDC, making it suitable for direct control of motors, heaters, and other devices requiring precise switching. The module’s terminal block connections simplify installation and wiring, reducing setup time and potential errors.
Incorporated with advanced circuitry, the IC697MDL710 ensures smooth and precise switching, minimizing electrical noise and improving system stability. Its non-isolated design allows for easy integration into existing control systems without the need for additional insulation measures.
Ideal for integration into PLC (Programmable Logic Controller) systems, this relay module supports seamless communication protocols, ensuring compatibility with a variety of control software. The included detailed user manual provides step-by-step instructions on programming and troubleshooting, ensuring quick deployment and maintenance.
Designed with durability in mind, the IC697MDL710 is manufactured using high-quality materials that can withstand the rigors of industrial use. It features a compact and durable housing that not only protects internal components but also enhances the overall efficiency of your control system.
