Operating Voltage Range:12V DC to 48V DC
Current Rating:Up to 5A
Terminal Blocks Quantity:2
Signal Wires Capacity:95 wires per block
Connectors:3 50-pin connectors
Bayonet Connectors Included:Yes
Jumper Count:5
Integrated Circuit Types:Standard rectifiers, diodes, capacitors
Material:Dielectric material for high insulation
Dimensions:L x W x H (mm)
:210 x 120 x 20
Weight:Approximately 500g

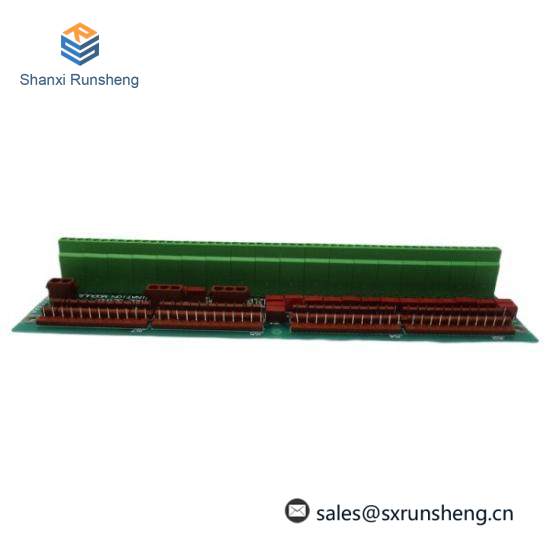

The GE-FANUC DS200DTBCG1A Relay Connector Terminal Board is meticulously engineered for seamless integration into complex industrial control systems. Its robust design ensures reliable performance under demanding conditions, making it a preferred choice for manufacturing facilities and automated processes.
This terminal board features two terminal blocks capable of handling up to 95 signal wires each, providing ample connectivity options for diverse applications. The inclusion of three 50-pin connectors facilitates versatile connection configurations, enhancing system flexibility.
Equipped with bayonet connectors and five jumpers, the board supports quick and secure installation, reducing downtime and maintenance efforts. The board’s dielectric material offers superior insulation, safeguarding against electrical hazards.
Designed for operation within a wide voltage range of 12V DC to 48V DC, this terminal board ensures compatibility across various industrial power sources. With a current rating of up to 5A, it can handle significant electrical loads efficiently.
Ideal for applications requiring precise signal management and connectivity, the GE-FANUC DS200DTBCG1A Relay Connector Terminal Board is an indispensable component in modern industrial automation solutions.
