Manufacturer:General Electric
Series:Mark V
Part Number:DS200KLDCG1AAA
Functional Description:LED/Key/Display Board
Coating:Normal Coating
Revisions:3
Backwards Compatibility:First two revisions
Assembly Type:Normal Assembly
Number of LEDs:32
Number of Displays:21 (4-character)
Jumper Switches:1
Connection Strip:40-pin on rear
Excess Voltage Limiting Components:Available
Display Type:Numerical (16-segment digits)
Board Markings:C-ESS, 6BA01
Drilled Corners and Edges:Yes
Engineered for reliability and precision, the GE DS200KLDCG1AAA LED Display Board is a cornerstone of advanced industrial control systems. It seamlessly integrates into the Mark V Series, providing unparalleled control and monitoring capabilities.
Featuring 32 high-brightness LEDs and 21 4-character displays, this board offers clear, detailed visual feedback essential for operational oversight. Its versatile design allows for customizable behavior through the use of a single jumper switch.
Equipped with two vertical pin connectors, the board ensures secure and stable connections, crucial for optimal performance in demanding industrial environments. The included capacitors, diodes, and resistors provide robust protection against voltage fluctuations.

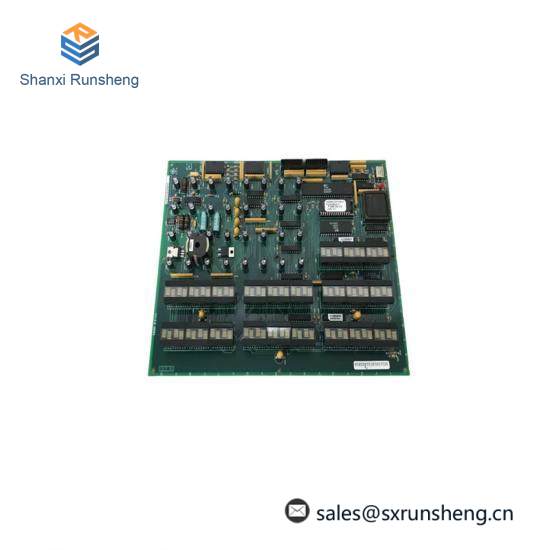

The top surface of the board is meticulously populated with components, including the seven LED displays designed for numerical data presentation. Each display utilizes sixteen-segment digits for precise information delivery.
Marked with identifying codes such as ‘C-ESS’ and ‘6BA01’, the DS200KLDCG1AAA is not just an accessory; it’s a critical component that enhances the functionality of your turbine control system, ensuring smooth operation and enhanced efficiency.
