GE 531X305NTBANG1 | Industrial Terminal Board for Drive & Exciter Cabinets

In stock

The GE 531X305NTBANG1 is a high-performance terminal board specifically designed for integration into industrial drive and exciter cabinets. It supports a variety of functions including relay outputs, serial communication, analog input/output, and power supplies, making it ideal for applications requiring precise control and reliable operation.

Product Type:NTB/3TB Terminal Board

Series:531X

Model Number:531X305NTBANG1

OEM:GE Motors and Industrial Systems

Instruction Manual:GEI-100020B (Supersedes GEI-100020A)

Weight:0.44 kg

Power Consumption:Regulated supplies at 5 VDC and 15 VDC; Unregulated supplies at 24 VDC or 125 VAC

Encoders Compatibility:Configurable using onboard jumpers for 5 V and 15 V

Relay Outputs:7, comprising either form A or form C outputs with contacts rated at 120 VAC

Low Level Analog I/O Scaling:Utilizes four potentiometers for easy configuration

Installation Parameters:Included with the product for seamless integration

The GE 531X305NTBANG1 Terminal Board is a high-performance component specifically engineered for integration into complex industrial drive and exciter systems.

This NTB/3TB terminal board seamlessly connects to a variety of control devices, enabling efficient communication through digital control inputs, relay outputs, low-level analog inputs, and outputs.

Capable of generating both regulated and unregulated power supplies, it ensures precise voltage control for diverse applications, enhancing operational efficiency.

Configurable encoder outputs allow for accurate speed measurement and control, making it ideal for precision machinery and automation processes.

With its robust design, the GE 531X305NTBANG1 is built to withstand demanding industrial environments, ensuring reliability and longevity in various settings.

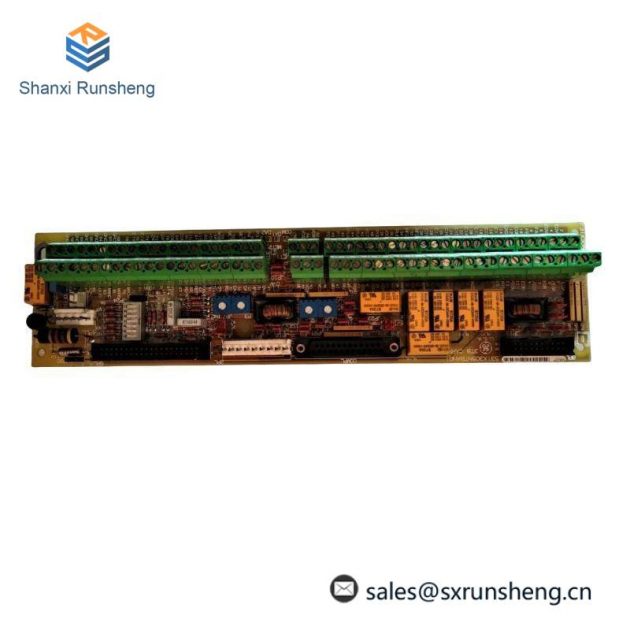

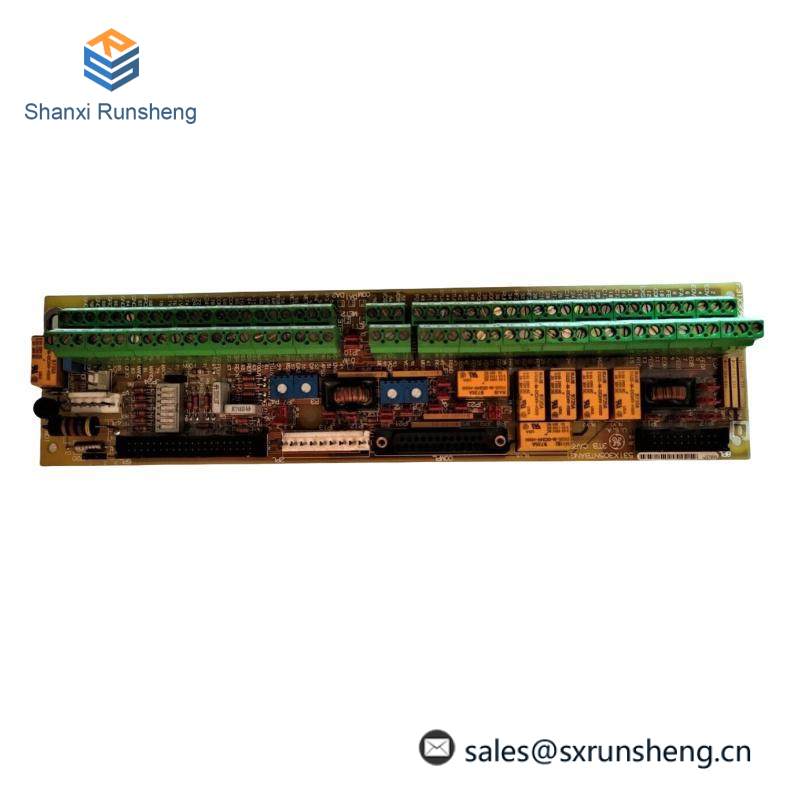

GE 531X305NTBANG1 NTB/3TB Terminal Board
