Control Power Nominal:20 VA
Control Power Input Range:110 to 250 VDC, 100 to 240 VAC at 50/60 Hz
Dimensions:Approx. 12 in H x 5 in W x 8 in L
Ground Current Input Frequency:20 to 100 Hz
Insulation Class:I
Phase Current Input Conversion:True RMS, 1.04 ms/sample
Weight:Approx. 4.5 kg
Motor Inrush Current Adjustment:Flexible
Cooling Rates & Acceleration Time:Customizable
Number of RTD Inputs:Optional
Fiber Optic Port:Installed
Enhanced Display & Harsh Environment Option:Included
Motor Health Report:Provided
Learning Data:Enhanced
Motor Start Data Logger:Available
LED Status Indicators & Service LED:Front Panel
LCD Display & Keypad:User-friendly interface

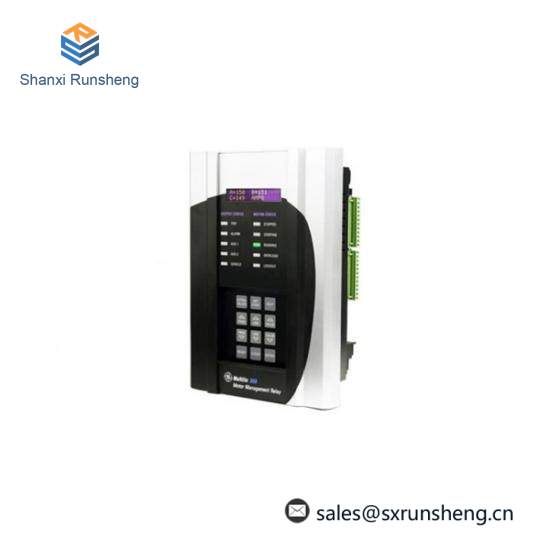

The GE 369HIRM000E is engineered to provide robust protection for your industrial motor systems, ensuring safety and reliability.
This advanced relay incorporates twelve RTD inputs, offering precise monitoring of temperature and operational conditions.
With its optional metering feature, the device allows for detailed logging and analysis of motor performance, enabling proactive maintenance and reducing unforeseen breakdowns.
Features adjustable settings for motor inrush current, cooling rates, and acceleration time, allowing for customized protection based on specific application needs.
The unit is equipped with an enhanced display and a harsh environment option, ensuring it operates effectively in challenging industrial settings.
Designed with user convenience in mind, the relay includes a front panel with nine LED status indicators and a service LED for easy monitoring, as well as a 40-character LCD display and a 9-key keypad for intuitive control.
