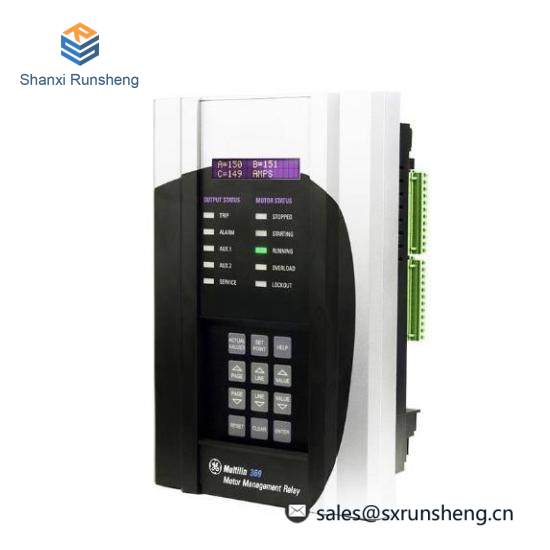

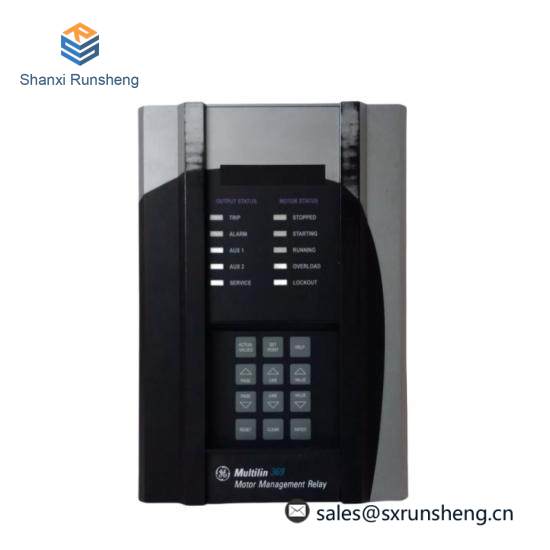

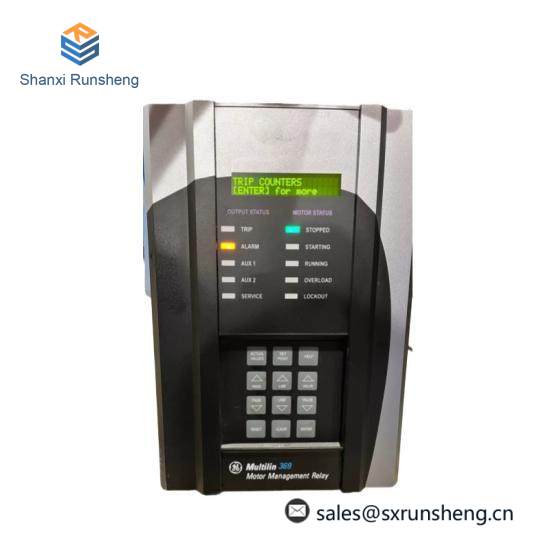

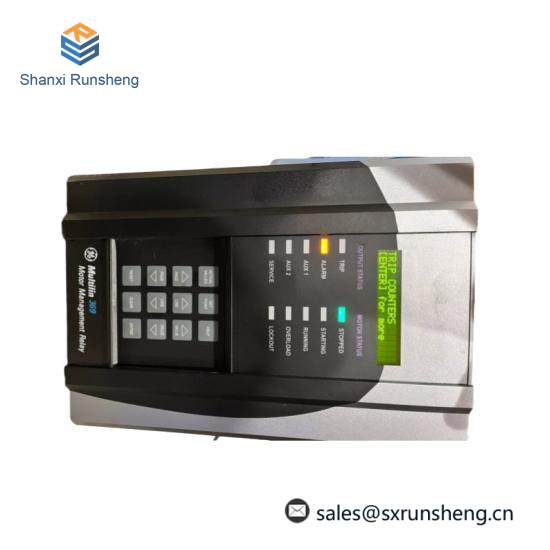

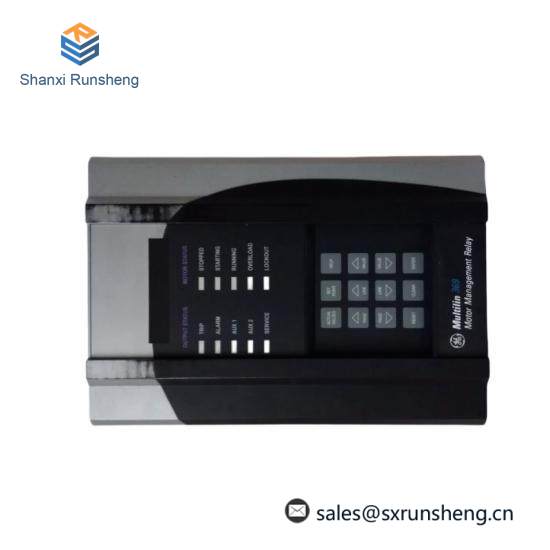

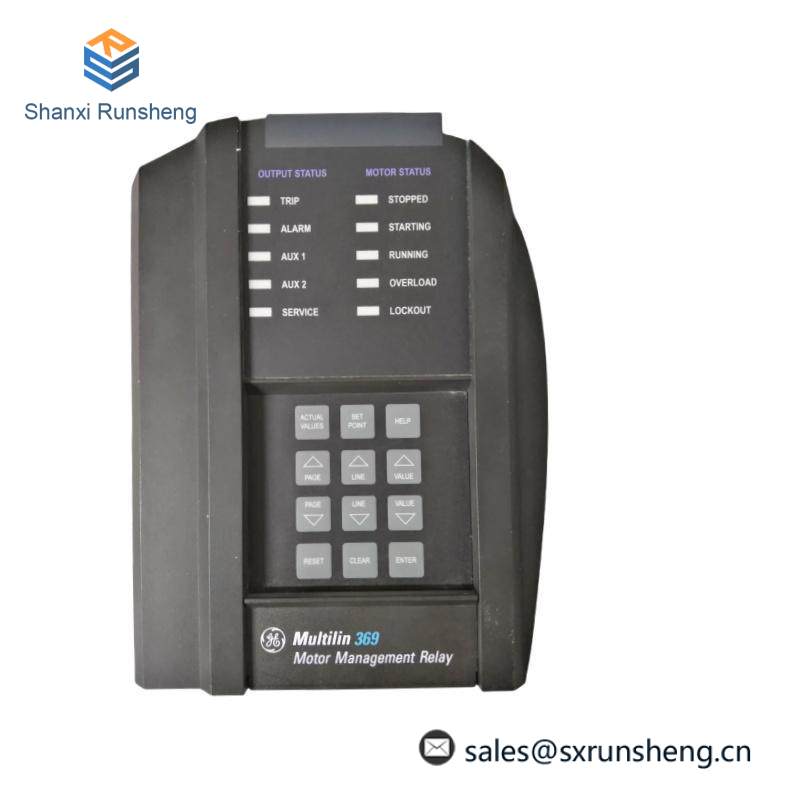

GE 369-HI-R-M-0-0 – Advanced Motor Management Relay with Optional Metering

In stock

The GE 369-HI-R-M-0-0 Motor Management Relay is a high-performance device designed to monitor and protect industrial motors. Featuring built-in metering and twelve RTD inputs, it ensures efficient operation and reduced downtime through advanced monitoring capabilities.

Control Power nominal:20 VA

Control Power maximum:65 VA

Control Power Input Range:110 to 250 VDC, 100 to 240 VAC at 50/60 Hz

Dimensions:approx. 12 in H x 5 in W x 8 in L

Ground Current Input Frequency:20 to 100 Hz

Insulation Class:Class I

Phase Current Input Conversion:True RMS, 1.04 ms/sample

Weight:approx. 4.5 kg

Optional Metering Feature:Yes

RTD Inputs:12

    The GE 369-HI-R-M-0-0 is a specialized Motor Management Relay designed for medium-sized motor systems.

     It is equipped with advanced features such as waveform capture, event reports, data logging, and optional metering capabilities which enable it to lower maintenance costs and reduce troubleshooting time.

     The relay’s robust design allows for optimal motor performance even under demanding industrial conditions.

     With its high-quality components and precise engineering, this model ensures reliable operation and enhanced protection for your critical motor assets.

     The GE 369-HI-R-M-0-0 features an array of built-in protections, including undervoltage auto-restart, reverse power, and starter failure detection.

     Its comprehensive monitoring capabilities provide real-time insights into motor health, allowing for proactive maintenance and improved operational efficiency.

GE 369-HI-R-M-0-0

GE 369-HI-R-M-0-0

GE 369-HI-R-M-0-0
