Allen Bradley AB 1756-CNBD ControlLogix Bridge Module – Advanced Communication Solution

In stock

The Allen Bradley AB 1756-CNBD ControlLogix Bridge Module is a high-performance communication solution designed for seamless integration within industrial automation systems. It enables efficient data exchange between ControlLogix PLCs and DeviceNet devices, enhancing system scalability and connectivity.

Model Type:ControlLogix Bridge Module

Manufacturer:Allen Bradley

Model Number:1756-CNBD

Number of Channels:Redundant 2 Channels

Current Rating:Drawn: 970 mA at 5.1 VDC, 1.7 mA at 24 VDC

Isolation:30 V (Continuous)

Basic Insulation Type:ControlNet A/B to Backplane, ControlNet A to ControlNet B

No Isolation Between NAP Or USB and Backplane:Not applicable

Enclosure Type:Open Type

RFI Suppression:Radiated: 10 V/M with 1 KHz sine-wave 80% AM from 80 – 2000 MHz, 10 V/M with 200 Hz 50% pulse 100% AM at 900 MHz, 3 V/M with 1 KHz sine-wave 80% AM from 2000 – 2700 MHz

Conducted EMI:10 VRMS with 1 KHz sine-wave 80% AM from 150 kHz – 80 MHz

    The Allen Bradley AB 1756-CNB/D ControlLogix Bridge Module is engineered for unparalleled performance in industrial automation environments. It seamlessly bridges the gap between ControlLogix systems and ControlNet networks, ensuring reliable and high-speed data communication.

    With its robust design, the module offers a current rating that meets the stringent requirements of modern industrial applications, supporting efficient operation under varying conditions.

    Featuring advanced isolation technology, this module ensures protection against electromagnetic interference, maintaining system integrity and enhancing operational reliability.

    The open-type enclosure facilitates easy installation and maintenance, while its compatibility with a wide range of operating temperatures ensures versatility across diverse industrial settings.

    Designed with user-friendliness in mind, the Allen Bradley AB 1756-CNB/D ControlLogix Bridge Module simplifies integration into existing control systems, streamlining automation processes and boosting productivity.

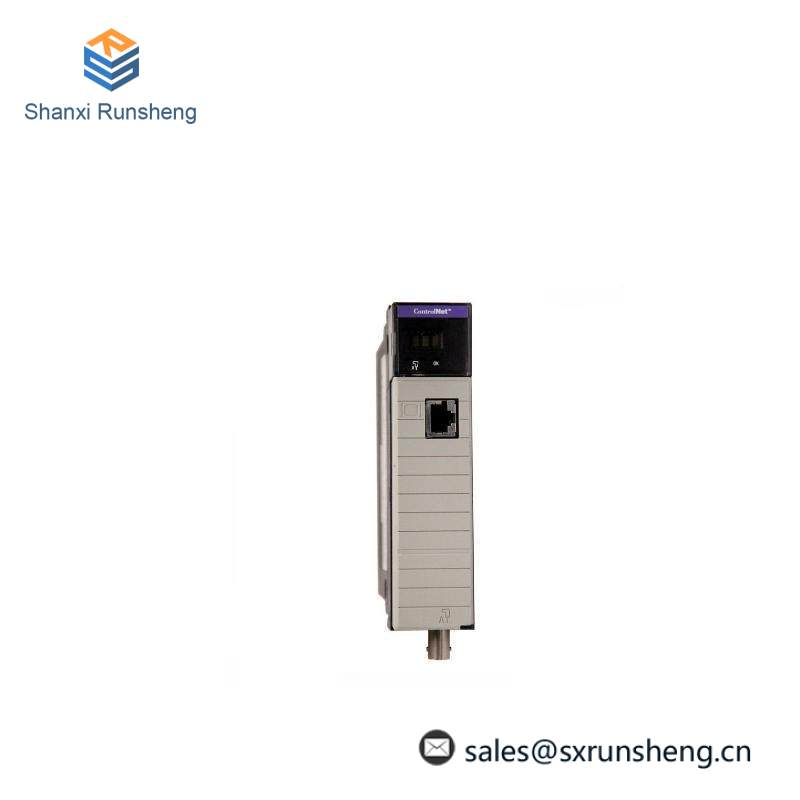

AB 1756-CNB/D ControlLogix Bridge module
