Current (AC):18 Amps RMS
Input Frequency (AC):47-63 Hz
Input Voltage (AC):120 – 240 VAC RMS, 1-Phase
Output Voltage:100-240VAC
Output Frequency Range:0-400 Hz
Continuous Output Power:1kW
Continuous Output Current:1A
Intermittent Output Current:30A (0-peak)
Dimensions:7.8 x 5.68 x 3.89 in (198.12 x 144.27 x 98.1 mm)
Weight:N/A
Operating Temperature:0-55 °C (32-131 °F)
Storage Temperature:-40-70 °C (-40-158 °F)
Relative Humidity:5-95% without condensation
Operating Shock:15 g (3 pulses, 11 ms)
Nonoperating Shock:30 g (3 pulses, 11 ms)

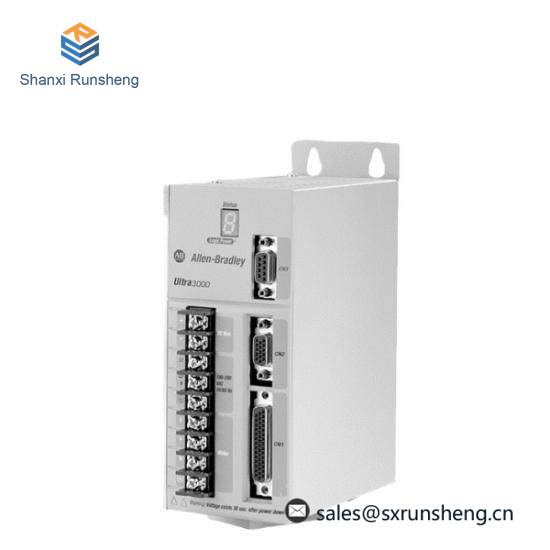

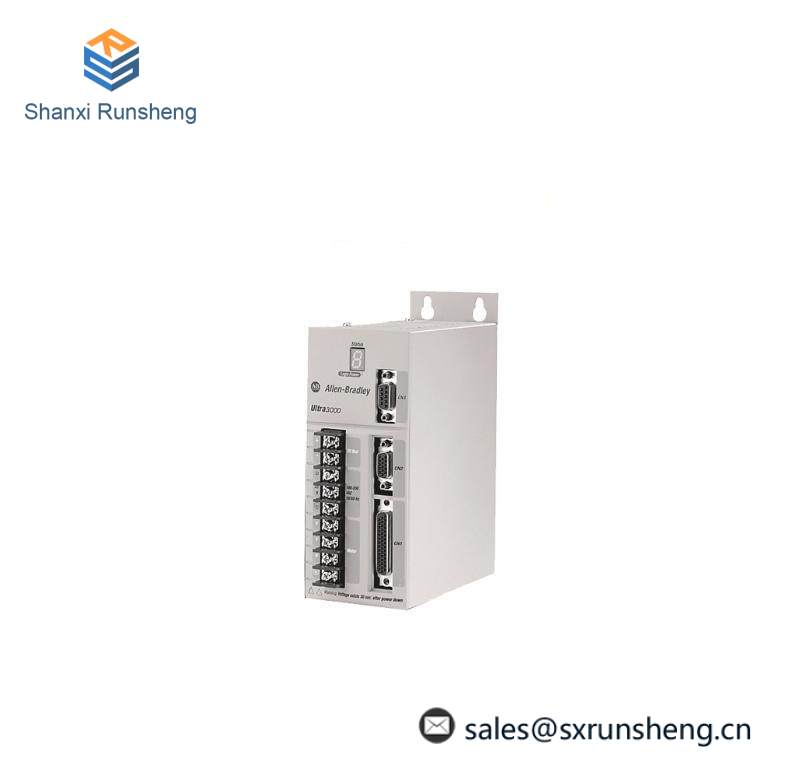

The Allen-Bradley 2098-DSD-020X is an advanced digital servo drive engineered for precision control in industrial environments. Designed to interface seamlessly with servo motors, it provides robust motion and position control capabilities essential for manufacturing processes.
With a wide input voltage range of 100-240 VAC rms, 1-Phase, and an input current of 18 Amps, the 2098-DSD-020X delivers reliable performance under varying conditions. Its continuous output power of 1 kW ensures consistent operation even during demanding tasks.
This drive supports simple indexing and preconfigured drive motions, making it ideal for applications requiring precise control without complex programming. It accepts feedback position data from encoders, ensuring accurate positioning every time.
Compact and durable, the 2098-DSD-020X measures 7.8 x 5.68 x 2.86 inches and weighs 2.1 kg. Its robust design allows it to operate efficiently within a temperature range of 0-55 °C and withstand shocks up to 15 g, ensuring long-lasting performance in harsh industrial settings.
Designed for versatility and reliability, the Allen-Bradley 2098-DSD-020X is the perfect solution for manufacturers looking to enhance their automation systems with precision and efficiency.
