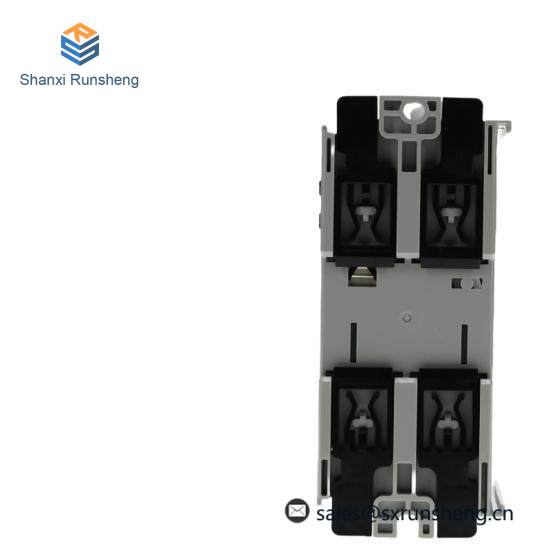

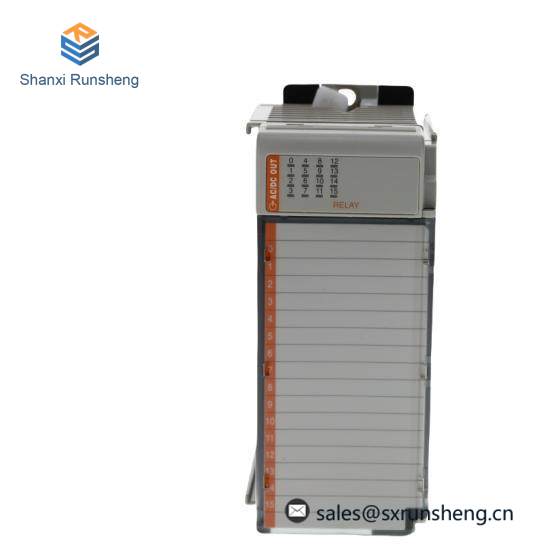

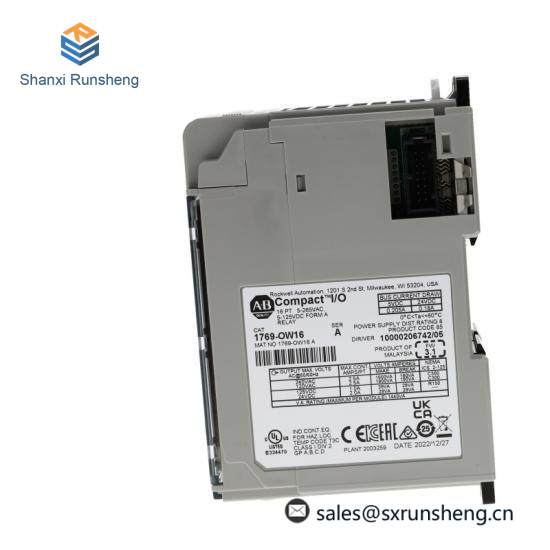

Allen-Bradley 1769-OW16/A CompactLogix Digital Contact Output Module

Model Type:Digital Contact Output Module

Module Type:Allen-Bradley

Output Capacity:16 Discrete Outputs

Voltage Category:24VDC

Output Voltage Range:20.4-26.4VDC

Module Compatibility:CompactLogix and MicroLogix 1500 LRP Controllers (except 1769-QBFC1B, 1769-L16x, and 1769-L18x)

Data Transfer Method:Ladder Logic

Single Slot Compatibility:1769 Backplane

Memory Access:Processor Memory Access for Data Transfer

Weight:0.58 kg

    The Allen-Bradley 1769-OW16/A CompactLogix Digital Contact Output Module is engineered for seamless integration into the CompactLogix system, ensuring reliability and efficiency in various industrial settings. This module boasts a compact design that fits within a single slot, making it highly versatile for different applications.

    Equipped with processor memory access for data transfer, the module ensures smooth communication between the controller and the output device, facilitating quick and precise signal processing. Utilizing Ladder Logic for data transfer enhances the module’s compatibility with existing control systems, simplifying setup and operation.

    With a voltage category of 24VDC and a flexible output voltage range of 20.4-26.4VDC, this module is capable of handling a wide spectrum of power requirements, ensuring compatibility across different industrial processes. The inclusion of 16 sourcing outputs allows for the control of up to 16 devices simultaneously, maximizing operational efficiency.

    Designed for easy mounting on DIN rails, the Allen-Bradley 1769-OW16/A CompactLogix Digital Contact Output Module offers a streamlined installation process. It is powered by a robust 24 Volt DC input, supporting a stable operating voltage range from 20 to 26.4 Volts DC, which ensures consistent performance under varying conditions.

    Ideal for food processing, petrochemicals, pulp and paper industries, automobile manufacturing, water and wastewater management, oil and gas exploration, and power generation, this module plays a pivotal role in automating complex processes. Its comprehensive set of features makes it a preferred choice for engineers and technicians seeking a dependable and efficient solution for their automation needs.
