Model Type:ControlLogix Input Module
Model Number:1756IH16I
Manufacturer:Allen-Bradley
Isolation Voltage:250 VAC/600 VDC
Number of Channels:16
Channel Configuration:Single-ended or differential
Input Types:Voltage or current
Input Range:0-20 mA, 4-20 mA, 0-10 Vdc, or 0-10 Vrms
Sampling Rate:1000 samples per second
Power Consumption:Max. 3.5 mA at 24 VDC
Communication Interface:ControlLogix EtherNet/IP
Environmental Conditions:Operating temperature: 0°C to 60°C, Storage temperature: -40°C to 70°C
Enclosure Type:Conformal coated, open type
Compliance Standards:UL, CE, CSA

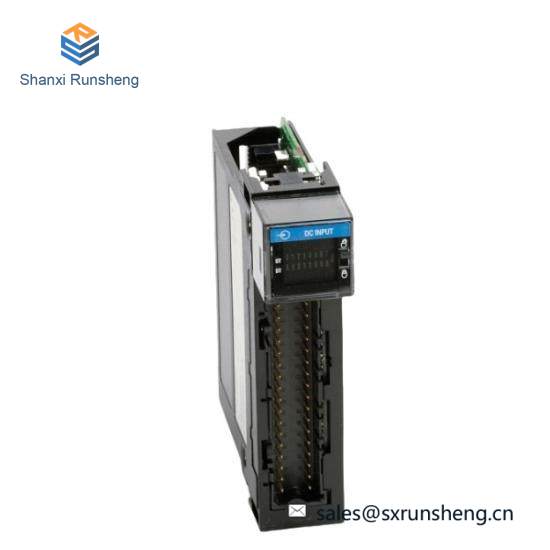

The Allen Bradley 1756-IH16I ControlLogix Isolated Input Module is engineered to meet the demands of demanding industrial automation environments. This robust module provides 16 highly isolated inputs, ensuring the integrity of signals across various industrial processes.
With its advanced isolation technology, the 1756-IH16I safeguards against electrical interference and ensures accurate signal acquisition even in harsh conditions. Its wide input voltage range from DC 24V and input current up to 20mA make it compatible with a broad spectrum of industrial applications.
Featuring an exceptionally fast response time of less than 1 millisecond, this module guarantees real-time performance critical for precise control systems. The integration of ControlNet interface facilitates seamless communication within complex automation networks.
Operating within a temperature range of -40°C to +85°C, the 1756-IH16I is designed for reliability in extreme environmental conditions commonly encountered in industrial settings. Its IP20 enclosure ensures protection against dust and light splashes, enhancing durability.
The Allen Bradley 1756-IH16I ControlLogix Isolated Input Module is not just a component; it’s a cornerstone of efficient and reliable industrial automation solutions, designed to enhance productivity and safety in manufacturing operations worldwide.
