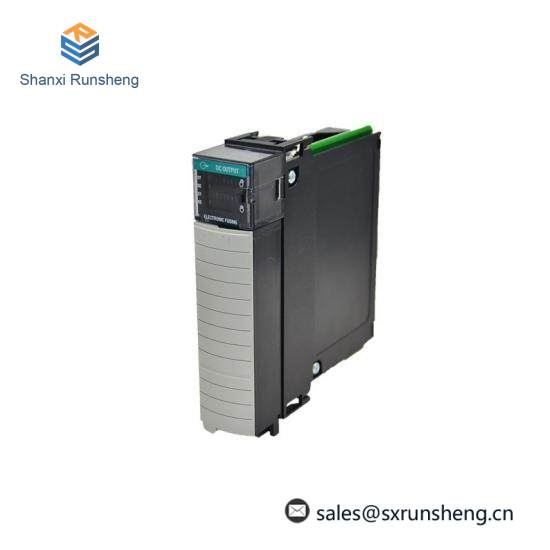

Allen-Bradley 1756-IB16I – ControlLogix DC Digital Input Module

Input Type:Discrete

Number of Inputs:16

Communication Cable:16-Point

Voltage Category:24V DC

Operating Voltage Range:20.4…26.4V DC

Current per Point:0.5 A @ 60 °C (140 °F), 1.0 A @ 30 °C (86 °F)

Power Supply:24 Volts DC

Bus Current Draw Max:200 mA

Mounting:DIN Rail or Panel Mount

Certified Product:Yes

    The Allen Bradley 1756-IB16I is a cutting-edge input module designed for seamless integration into ControlLogix systems, providing unparalleled performance and reliability in industrial automation environments.

    With its 16-point digital design, this module is optimized for managing a variety of signals with precision, making it an indispensable tool for complex manufacturing processes.

    Equipped with a wide operating voltage range, the 1756-IB16I ensures robust functionality across diverse industrial settings, from extreme temperatures to varying power sources.

    Each input channel is capable of handling up to 0.5 A at 60°C (140°F) or 1.0 A at 30°C (86°F), ensuring reliable signal transmission under demanding conditions.

    The module’s efficient power consumption and maximum bus current draw contribute to reduced system energy costs, making it an eco-friendly choice for sustainable industrial operations.

    Easy mounting options on DIN rails or panels facilitate quick installation and maintenance, minimizing downtime and enhancing operational efficiency.
