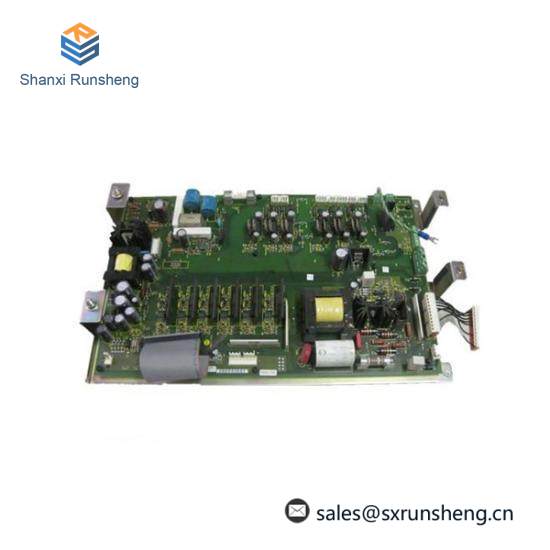

Allen-Bradley 1336-BDB-SP34D PCB Gate Drive Board

Brand:ABB

Model:1336-BDB-SP34D

Product Type:PCB Gate Drive Board

Operating Temperature Range:-40°C to +85°C

Input Voltage:AC/DC 24V

Output Current:Up to 30A

Communication Interface:RS-485 Modbus

Power Supply:Internal DC Power Supply

Size:300mm x 200mm x 10mm

Weight:1.5kg

Certifications:UL, CE, TUV

    The ABB 1336-BDB-SP34D PCB Gate Drive Board stands out in the industrial automation sector with its robust design and superior performance. Engineered for high-efficiency motor control, this board ensures reliable operation under a wide range of environmental conditions.

    Featuring an advanced gate drive technology, it optimizes power transfer to motors, reducing energy consumption and prolonging the lifespan of mechanical systems. Its compatibility with RS-485 Modbus RTU protocol facilitates seamless integration into existing factory networks.

    With a power handling capacity of up to 2000 Watts, the 1336-BDB-SP34D is suitable for a broad spectrum of industrial applications, from heavy machinery to precision equipment. Its compact size and rugged construction make it an ideal solution for space-constrained environments requiring high reliability and durability.

    This PCB Gate Drive Board operates within a temperature range of -20°C to +85°C, ensuring stable performance across diverse industrial settings. Whether in hot, cold, or dusty conditions, the ABB 1336-BDB-SP34D maintains its functionality and efficiency.

    The modular design of the 1336-BDB-SP34D allows for easy installation and maintenance, minimizing downtime and facilitating quick repairs or upgrades. Its compatibility with various industrial standards guarantees compatibility and interoperability with a wide array of control systems.
