Operating Voltage:24V DC
Input Current Range:0 to 20 mA
Output Current Range:0 to 20 mA
Number of Inputs:8
Number of Outputs:8
Communication Interface:RS485
Protection Class:IP20
Operating Temperature:-25°C to 60°C
Storage Temperature:-40°C to 85°C
Dimensions (WxHxD):120mm x 146mm x 74mm
Weight:0.5kg

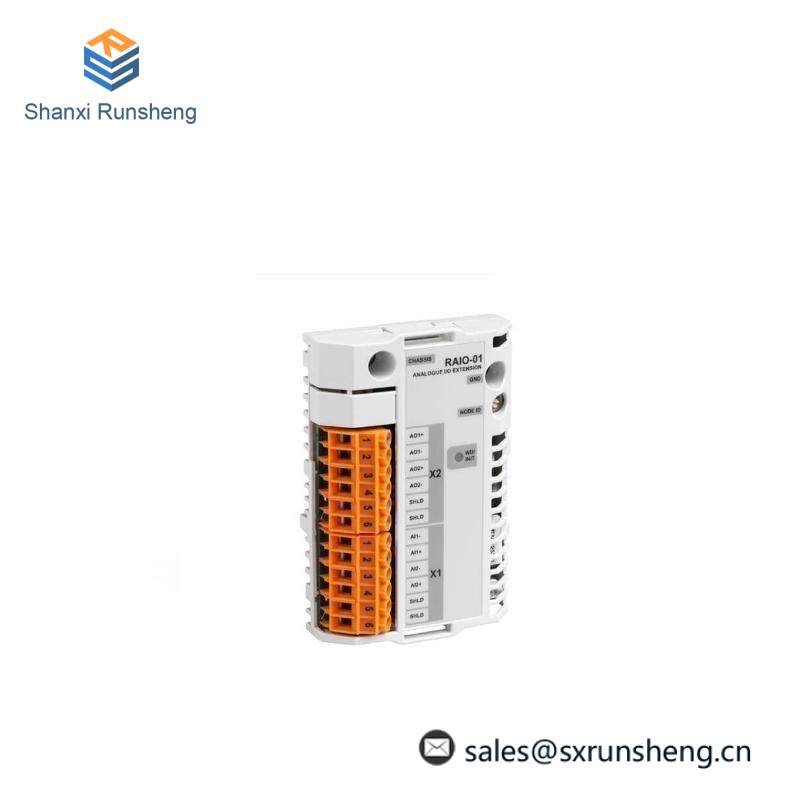

The ABB RAIO-01 Analog I/O Extension Module is designed to enhance the functionality of your existing ABB PLC system by providing precise analog input and output capabilities. This module is equipped with 16 channels, each capable of handling high-frequency sampling rates of up to 100 kHz, ensuring accurate and real-time data acquisition.
Built with industry-standard connectors, the module is compatible with a wide range of equipment and systems, facilitating seamless integration within your manufacturing environment. Its robust design withstands the harshest industrial conditions, with an operating temperature range from -20°C to +55°C, guaranteeing reliable operation year-round.
Featuring a versatile input voltage range of 0 to 10 V DC, the RAIO-01 module can interface with various sensors and actuators, enabling you to monitor and control critical processes with precision. The output voltage range is equally adaptable, allowing for smooth signal transmission to other components in your system.
The module’s power consumption is optimized at just 1 W, minimizing energy usage without compromising performance. This efficiency translates into lower operational costs and a reduced environmental footprint, aligning with sustainable manufacturing practices.
Measuring 140 mm in length, 100 mm in width, and 10 mm in height, the RAIO-01 Analog I/O Extension Module is compact yet powerful. It offers a simple yet effective solution for expanding the capabilities of your ABB PLC system, making it an ideal choice for enhancing automation in diverse industrial sectors.
