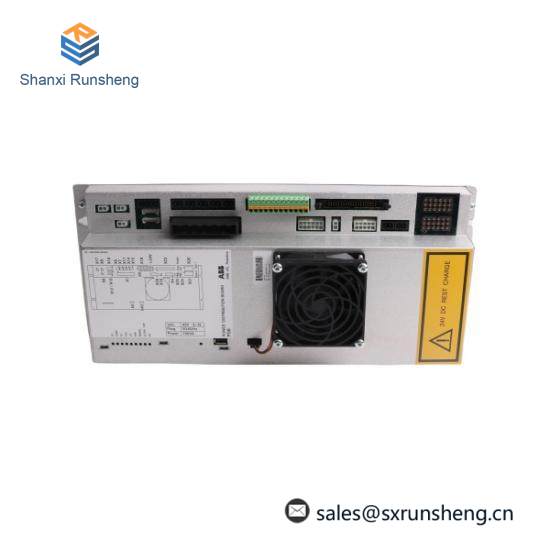

ABB PDB-02 3HNA023093-001: Thermocouple/mV Input Module for Precision Industrial Control

In stock

The ABB PDB-02 3HNA023093-001 Thermocouple/mV Input Module is designed for precise temperature measurement and voltage input, ensuring reliable data collection in industrial control systems.

Model Number:3HNA023093-001

Manufacturer:ABB

Thermocouple Compatibility:J, K, E, T, R, S, B, N

Voltage Range:±20mV

Operating Temperature:-20°C to +85°C

Supply Voltage:DC 24V

Input Current:Max. 50mA

Power Consumption:Max. 1W

Communication Interface:MODBUS RTU

Enclosure Rating:IP65

Dimensions:145mm (L) x 72mm (W) x 30mm (H)

The ABB PDB-02 3HNA023093-001 Thermocouple/mV Input Module is an essential component for any industrial control system requiring accurate temperature monitoring. Its compatibility with various thermocouple types ensures seamless integration into diverse systems.

With an exceptionally wide input range from -200°C to +1800°C, this module is capable of handling a vast array of industrial processes, making it suitable for both high and low temperature applications.

The direct conversion of thermocouple outputs to millivolt signals facilitates easy integration into existing digital systems, streamlining data processing and enhancing system efficiency.

Featuring an accuracy of ±0.5% of full scale, the ABB PDB-02 3HNA023093-001 guarantees reliable and precise temperature measurements, crucial for maintaining process control and safety standards.

Low power consumption at less than 2.5mA at 24V DC ensures efficient operation and reduces energy costs, contributing to a more sustainable and cost-effective industrial setup.

ABB PDB-02 3HNA023093-001 Thermocouple/mV Input Module
