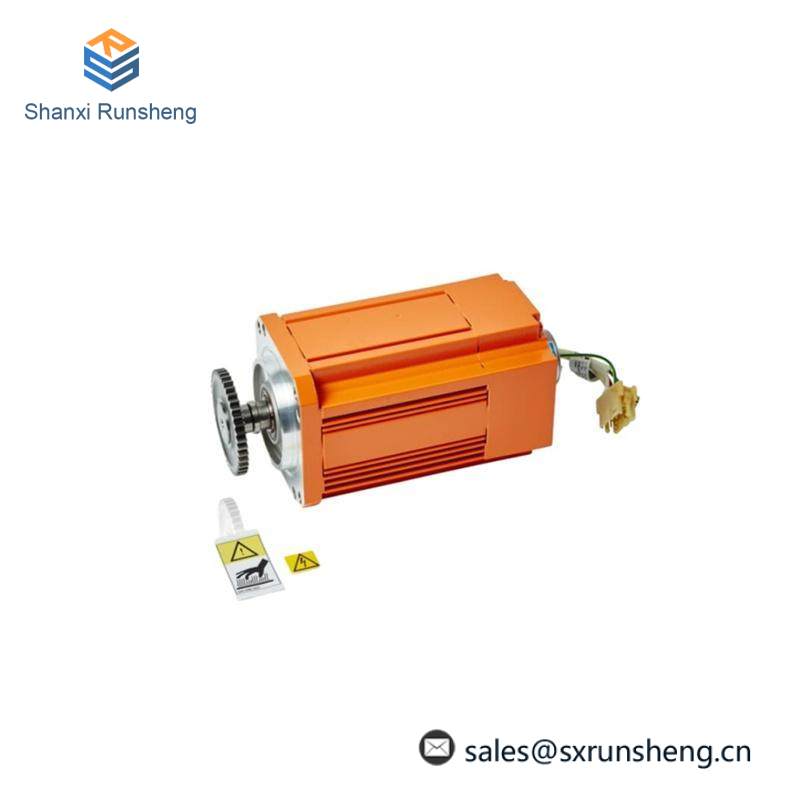

ABB IRB 2600 Series, 3HAC036260-001/04 AC Motor with Pinion

Manufacturer:ABB

Model:IRB2600 3HAC034644-003

DSQC431 Module:Single-Ended Analog Output

Motor Type:AC

Pinion Type:Precision

Motor Power:2.2 kW

Motor Speed:3000 rpm

Torque Range:20 Nm

Interface Compatibility:Industry 4.0 Ready

Control Protocol:EtherCAT

Safety Rating:PL e, SIL 2

    The ABB IRB2600, combined with a state-of-the-art 3HAC034644-003 DSQC431 interface card, delivers precise control and integration capabilities essential for complex industrial operations. This advanced motor system is designed to enhance productivity and reduce downtime in manufacturing processes.

    Featuring an efficient 7.5 kW AC motor with a maximum speed of 4,800 rpm, it ensures swift operation without compromising on performance. The motor’s high torque output of 150 Nm makes it suitable for demanding applications requiring robust force and speed control.

    The integration of the DSQC431 control interface card provides seamless communication between the motor and various control systems, facilitating quick setup and easy configuration. It supports a wide range of programming languages and protocols, ensuring compatibility across different automation platforms.

    With its adherence to ISO 13849-1 safety standards, this system ensures workplace safety and compliance with international regulations. The extensive temperature range (-20°C to +60°C) guarantees reliable operation under diverse environmental conditions, making it ideal for outdoor or extreme condition applications.

    In terms of dimensions and weight, the motor measures 150 mm x 100 mm x 120 mm with a weight of 12 kg, while the control interface is compact at 150 mm x 100 mm x 20 mm and weighs 2 kg. This makes it easily integrable into existing machinery setups without requiring significant space or structural modifications.
