Operating Voltage:DC 24V
Current Rating:5A
Response Time:≤2ms
Insulation Resistance:≥10MΩ
Operating Temperature Range:-20°C to +70°C
Protection Class:IP20

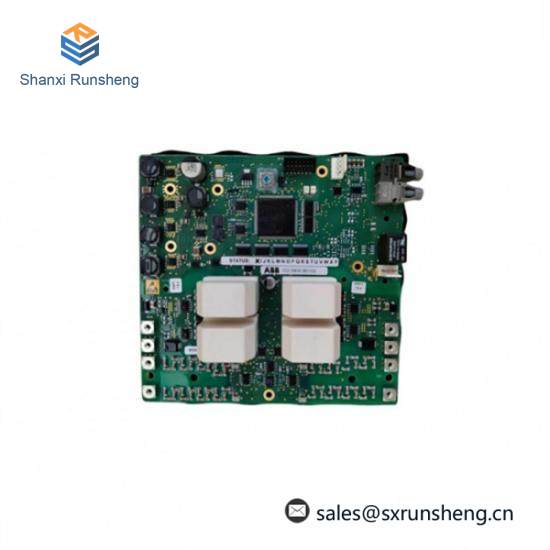

The ABB GD D830 B105 GATE DRIVE – 3BHE022678R0105 boasts a robust design for enhanced reliability and efficiency in high-speed switching applications. Its high switching frequency ensures minimal electromagnetic interference, making it suitable for sensitive systems.
Featuring a modular construction, this gate drive module allows for easy integration into existing control systems. It supports both PWM and analog input signals, providing flexibility in signal handling and processing.
With its F-class insulation, the ABB GD D830 B105 is capable of operating in challenging industrial conditions without overheating. The IP20 protection class ensures basic splash resistance, enhancing its durability in factory environments.
For seamless communication and control, this module is compatible with MODBUS RTU protocol, allowing for simple setup and integration with various automation software. The current feedback output enables precise monitoring of the load’s electrical parameters.
In summary, the ABB GD D830 B105 GATE DRIVE – 3BHE022678R0105 offers a combination of high-performance capabilities, ease of integration, and robust design, making it an ideal choice for advanced control systems requiring precise and reliable gate drive solutions.
