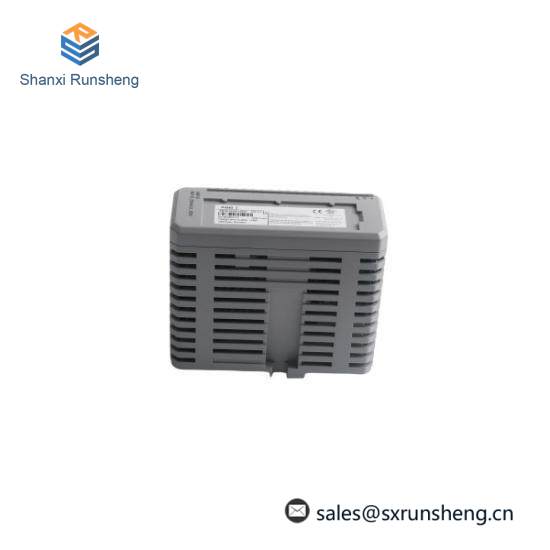

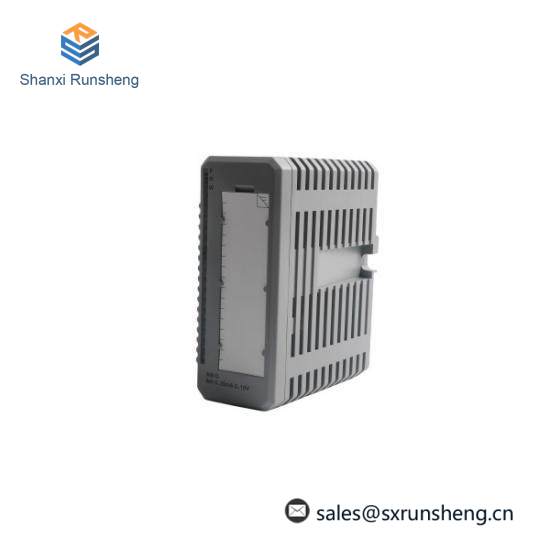

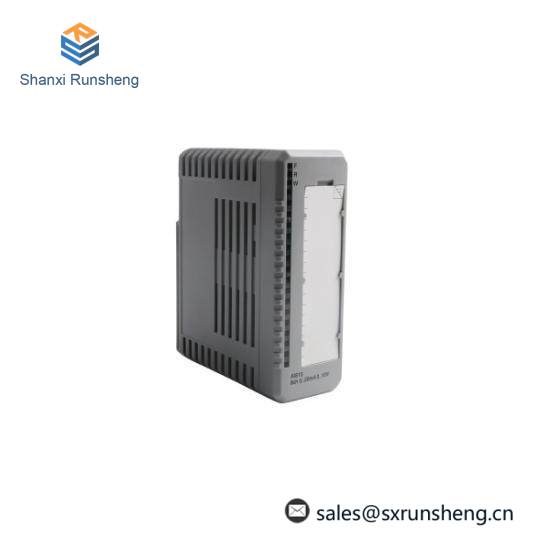

ABB AI810-EA | 3BSE008516R2 | Analog Input Module

Manufacturer:ABB

Model:AI810-EA 3BSE008516R2

Type:Analog Input Module

Channels:8

Resolution:12-bit

Rated Isolation Voltage:50V

Power Consumption:≤2W

Operating Temperature:-25°C to +60°C

Mounting Style:Panel Mount

Enclosure Rating:IP20

Dimensions (D x H x W):102 x 119 x 45 mm

Weight:0.3kg

    The ABB AI810-EA 3BSE008516R2 Analog Input Module stands as a testament to ABB’s commitment to innovation and quality in industrial automation solutions. This module is meticulously engineered to provide unparalleled accuracy and reliability, essential for the smooth operation of manufacturing processes.

    Equipped with 8 channels for measuring electrical signals across a wide range of voltages (-20 to +80V DC), this module ensures precise data collection, critical for process control and monitoring. Its ±0.1% + 2 LSB accuracy at 24V DC makes it an indispensable tool for industries requiring high precision.

    Operating within an extended temperature range of -25°C to +85°C, the AI810-EA 3BSE008516R2 is built to withstand harsh industrial environments, ensuring continuous performance under varying conditions. With an insulation voltage of 500V AC, it guarantees safety and protection against electrical hazards.

    The compact design, measuring 44mm x 119mm x 106mm and weighing just 0.18kg, makes it easily integrable into existing systems without compromising on functionality or space. Its 24V DC power supply requirement aligns with standard industrial automation setups, further simplifying its installation and maintenance.

    In summary, the ABB AI810-EA 3BSE008516R2 Analog Input Module is a reliable choice for industrial applications, offering high precision, robustness, and ease of integration, all backed by ABB’s reputation for excellence in automation technology.
