Module Type:IGBT Module
Manufacturer:ABB
Model:5SNA0600G650100
Power Rating:6000 VA
Operating Voltage:650 VDC
Frequency:50/60 Hz
Insulation Class:F
Max Current:100 A
Thermal Resistance:≤ 1 K/W
Cooling System:Air Cooled
Dimensions (LxWxH):220 x 150 x 100 mm
Weight:2.5 kg
Environmental Conditions:Temperature: -5°C to +50°C, Humidity: 5% to 95% RH non-condensing
Protection Level:IP20

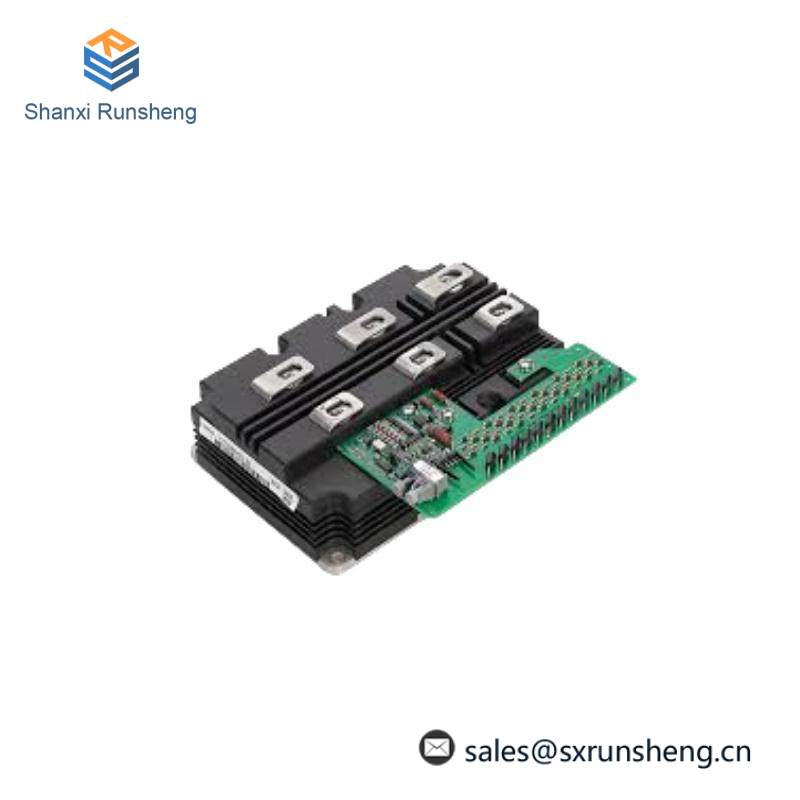

The ABB 5SNA0600G650100 HiPak IGBT Module is a state-of-the-art component designed to withstand the most demanding industrial environments. Its robust construction ensures longevity and minimal maintenance requirements.
With its high switching frequency, this IGBT module delivers exceptional performance, enabling faster response times and more efficient power conversion. This is particularly beneficial in applications requiring rapid acceleration or precise control.
Featuring a wide operating temperature range from -40°C to +125°C, the module is suitable for extreme conditions encountered in various industries. Its excellent insulation resistance guarantees reliable operation even under high voltage stress.
Crafted from premium materials, the ABB 5SNA0600G650100 HiPak IGBT Module ensures durability and safety. Its compact size makes it easy to integrate into existing systems without compromising on performance.
Installation and maintenance are straightforward thanks to the module’s modular design. Comprehensive documentation and support from ABB ensure a seamless integration process, allowing users to focus on their core operations.
