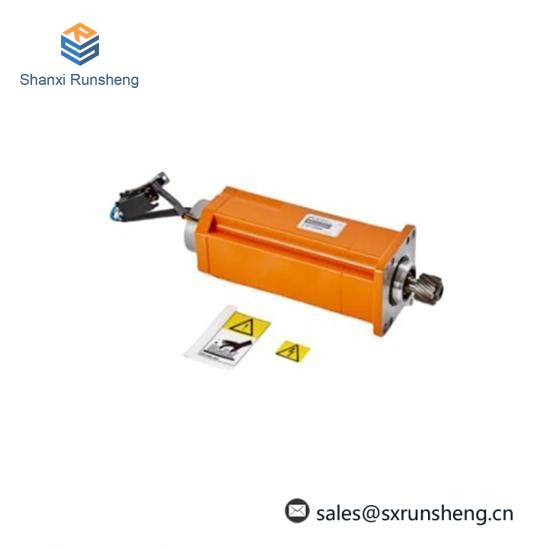

ABB 3HAC021353-001 Motor with Pinion DCS Module – Industrial Control System Innovation

Motor Type:Precision Control

Model Number:3HAC021353-001

Pinion Type:DCS Compatible

Motor Capacity:2.2 kW

Voltage Rating:230 VAC

Frequency:50 Hz

Speed:3000 RPM

Torque:20 Nm

IP Rating:IP54

Enclosure Type:Open Frame

Operating Temperature Range:-10°C to +40°C

Input Voltage Compatibility:230 VAC

Output Current:2.2 A

Power Factor:0.85

Protection Class:F

Starting Method:Direct On Line (DOL)

Motor Design:Efficient IE3 Efficiency

Motor Mounting:ISO 941

Braking System:Electronic Braking

Communication Protocol:Modbus RTU

Installation Type:Panel Mount

Dimensions:120 x 100 x 90 mm

Weight:2.5 kg

    Integrating advanced technology and robust engineering, the ABB 3HAC021353-001 motor with pinion DCS control module is engineered to provide unparalleled precision in industrial automation tasks. This high-capacity motor boasts a 2.2 kW output, making it suitable for a wide range of applications from material handling to machine tools.

    Featuring an open frame enclosure and a robust IP54 rating, the motor ensures durability and safety in various environmental conditions. Its efficient IE3 design guarantees minimal energy loss and superior operational efficiency, contributing to reduced maintenance costs and prolonged service life.

    The inclusion of a DCS compatible pinion module allows seamless integration with existing automation systems, simplifying setup and operation. The electronic braking system ensures smooth shutdowns, enhancing operator safety and equipment longevity.

    Equipped with a 230 VAC input voltage, this motor offers flexibility across different industrial settings, ensuring compatibility with a broad spectrum of power sources. Its compact dimensions (120 x 100 x 90 mm) and lightweight design (2.5 kg) facilitate easy installation on panels or machines without compromising performance.

    With a 3000 RPM speed and 20 Nm torque, the ABB 3HAC021353-001 motor is capable of delivering precise control and high throughput in demanding industrial applications. Its IP54 rating protects against dust and light water splashes, ensuring reliable operation in dusty environments.

    For optimal performance and user convenience, this motor is designed with an electronic starting method (Direct On Line, DOL) and a power factor of 0.85. The protection class F indicates a higher level of insulation, safeguarding against overheating and extended lifespan.
