Model Type:Redundant Bridge Module
ControlLogix Communication Module:Yes
Number of Channels:2
Current Rating (Drawn):970 mA at 5.1 VDC, 1.7 mA at 24 VDC
Isolation Level:30 V (Continuous)
Communication Protocols:ControlNet, ControlNet A/B to Backplane
Enclosure Type:Open Type
RFI Suppression:Radiated: 10 V/M with 1 KHZ Sine-Wave 80% AM from 80 – 2000 MHz, 10 V/M with 200 Hz 50% Pulse 100% AM at 900 MHz
Temperature Rating:0 – 60 °C
Power Dissipation:5.1 W
Environmental Conditions:5 – 95% Non-Condensing Relative Humidity
Vibration Resistance:2 G
Shock Resistance:30 G
Interface Type:Ethernet, USB Port
Connection Cables:802.3 Compliant Shielded or Unshielded Twisted Pair

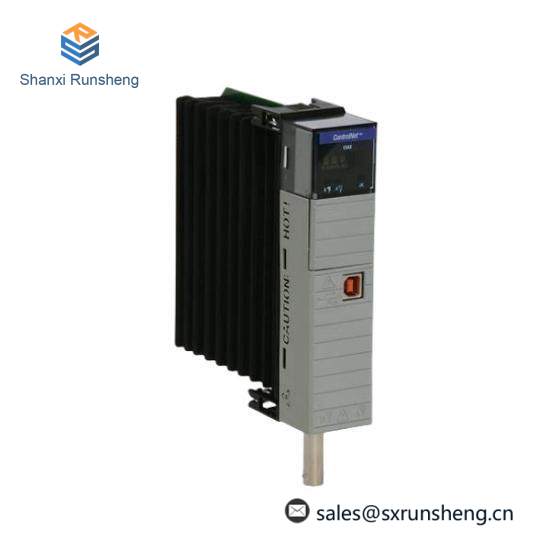

Integrating advanced redundancy technology, the AB 1756-CN2RXT ControlNet Redundant Bridge Module ensures robust connectivity in demanding industrial environments. Its hot standby feature guarantees uninterrupted operation, even in case of unexpected failures, thus minimizing downtime and maximizing production output.
Featuring a compact and durable IP20 enclosure, this module is designed for easy installation and maintenance, ensuring reliable performance in a variety of industrial settings. The M12 connector facilitates secure and quick connection to ControlLogix controllers and other ControlNet devices, simplifying the setup process.
With its fast data transfer rate of up to 100 kbps, the 1756-CN2RXT ensures timely and accurate communication, crucial for complex control applications requiring high-speed data exchange. This feature is particularly advantageous in scenarios where rapid response times are essential for operational efficiency.
The module’s low power consumption, combined with its wide temperature range, makes it suitable for a broad spectrum of industrial conditions. Whether operating in extreme cold or heat, this ControlNet Redundant Bridge Module maintains optimal performance, providing consistent reliability throughout its lifecycle.
Designed with user-friendliness in mind, the AB 1756-CN2RXT includes intuitive diagnostics and self-testing capabilities, enabling quick identification of issues and swift resolution. This not only reduces maintenance time but also enhances overall system reliability by proactively addressing potential problems.
