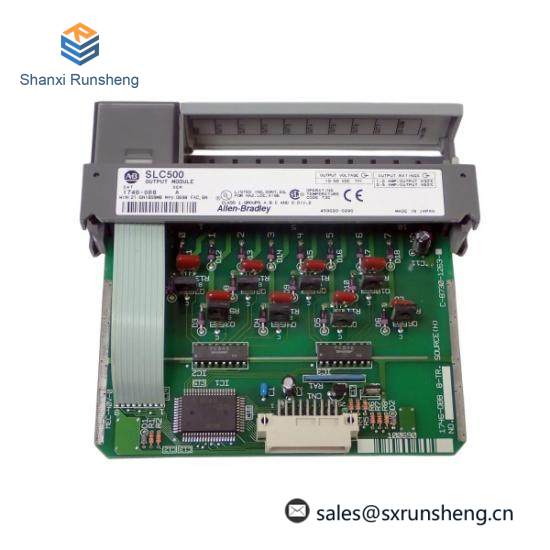

AB 1746-OB8 Output Module – SLC 500 Analog Control

Model Type:SLC 500

Model Number:1746-OB8

Manufacturer:Allen Bradley

Channels:8

Output Type:Digital DC Output

Voltage Range:5 – 50 VDC

On-State Voltage Drop:1.2 V

Off-State Output Leakage:1 MA

Load:1 MA

Current Rating:Backplane: 190 MA, Continuous Current Per Output: 0.25 A at 60 DEG C, Continuous Current Per Module: 8 A at 60 DEG C

Isolation:Communication Circuits: 500 VDC, Backplane: 1500 VAC

Temperature Rating:0 – 60 DEG C

Environmental Conditions:5 – 95% Relative Humidity

Enclosure:Open Type

Mounting:Chassis

    Engineered for seamless integration into Allen Bradley’s SLC 500 system, the 1746-OB8 module boasts 8 digital output channels for precise control over industrial processes.

    Featuring a wide operating voltage range of 5 to 50 VDC, this module ensures compatibility with diverse industrial applications, delivering consistent performance under various conditions.

    With an on-state voltage drop of just 1.2V and off-state leakage current less than 1mA, the 1746-OB8 provides minimal power consumption and maintains signal integrity.

    Capable of handling a maximum load of 1 mA per channel, this module supports a wide range of load types and sizes, enhancing its adaptability across different industrial setups.

    Rated for continuous operation at a current of 0.25 A per output and a maximum of 8 A per module at 60°C, the 1746-OB8 ensures reliable performance even in demanding environments.

    Designed for open type enclosures, the module allows for easy installation and maintenance, further enhancing its practicality in industrial settings.
