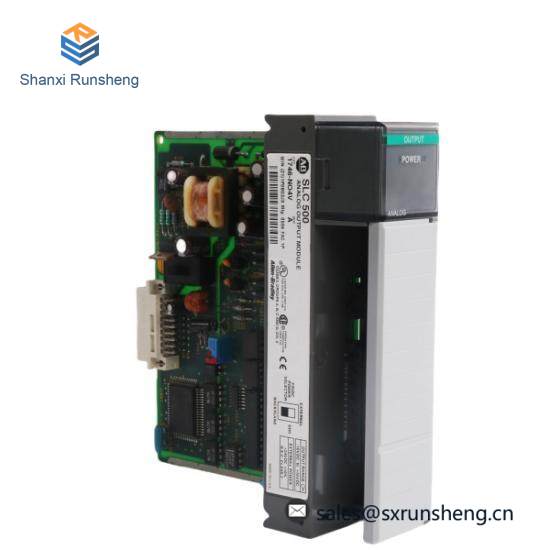

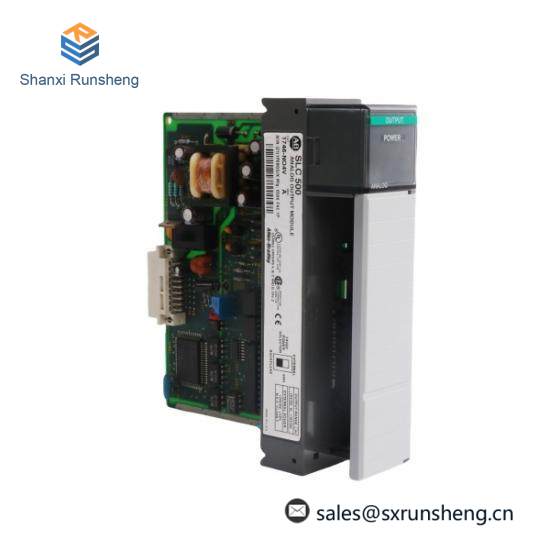

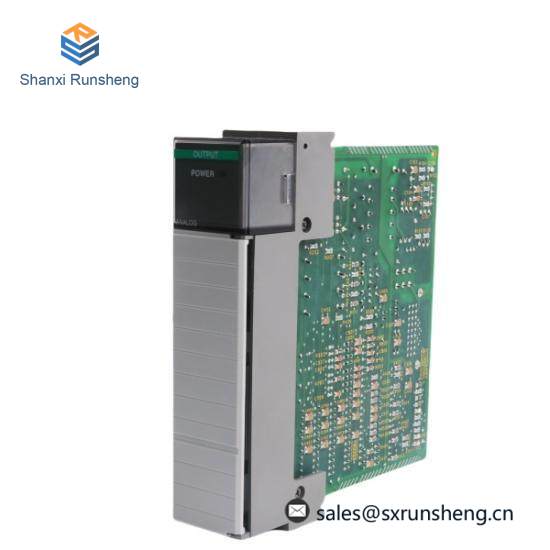

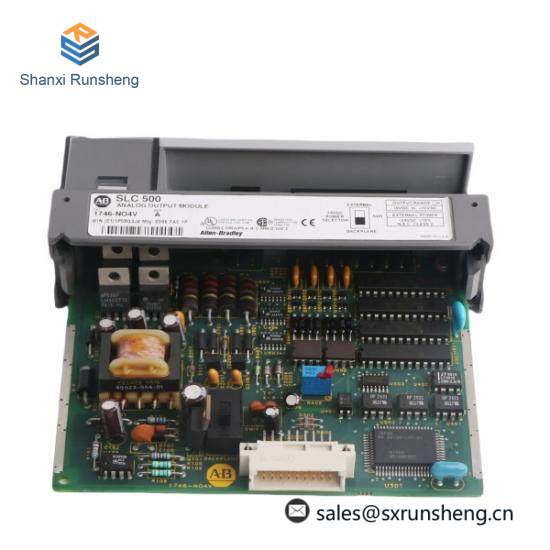

AB 1746-NO4V SLC500 Analog Output Module

In stock

The AB 1746-NO4V is a high-resolution analog output module designed for SLC 500 systems. It provides precise control over industrial processes by delivering stable and accurate electrical signals.

Model Type:SLC500

Model Number:1746-NO4V

Manufacturer:Allen Bradley

Channels:2

Input Range:-20 to 20 mA

Absolute Input Current:-30 to 30 mA (Maximum)

Output Range:-10 to 10 V – 1 LSB

Voltage Rating:Overvoltage Protection: 7.5 VAC RMS

Input Common Mode Voltage Range:-20 to 20 V

Input Absolute Voltage:±7.5 VDC or ±7.5 VAC RMS (Maximum)

Full Scale Voltage:10 VDC

The AB 1746-NO4V Analog Output Module is an essential component for any industrial control system requiring high precision and reliability. Designed by Allen Bradley, this module provides unparalleled accuracy and stability in controlling analog signals across four distinct channels. With a wide input voltage range from -20 to 20 V and a robust absolute input voltage rating of +/- 7.5 VDC or 7.5 VAC RMS, it ensures reliable operation even under extreme conditions. Each channel can handle an input range of -20 to 20 mA with an absolute input current of -30 to 30 mA (maximum). The output range of -10 to 10 V – 1 LSB offers precise control over your industrial processes. Overvoltage protection up to 7.5 VAC RMS ensures long-term reliability, while the backplane current draw of 55 mA minimizes energy consumption. This module is certified and compatible with various industrial environments, making it an indispensable tool for any automation setup.

A-B 1746-NO4V
